This product is certified silicone free

This product is safe for industrial use



15 gauge flexible polypro dispense tips 1.5" long

Offering the widest range of dispensing tips for use with syringe barrels, dispense bottles, dispense valves and robots. All tips are industrial grade safe for use to 100 psi air pressures and are certified silicone-free. Luer lock secure attachment for leak free dispensing.

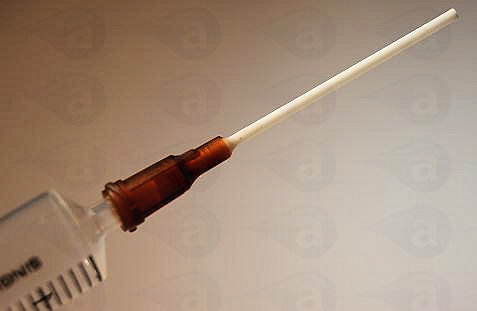

3115PP-B Polypro dispensing tip 1.5" long


A flexible 15 gauge polypropylene double helix luer lock tip suited to dispensing cyanoacrylates, solvents, primers, activators and other adhesives. Amber colour coded hub with white 1.5" long flexible shaft that can also be cut to length if required. Certified silicone-free and industrial grade safe to 100 psi. Supplied in sealed packs of 50.

The polypro series tips have a colour coded hub. Typical applications include the dispensing of cyanoacrylate adhesives as well as potting through small holes. The soft tube will not scratch or damage sensitive substrates. Semi rigid shaft will flex.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.


Suitable for...
Make dots of adhesives Adhesives
Make beads of adhesives Sealants
Potting of components Epoxies
Bonding of components Primers
Sealing of components Solvents
Dispense lubricants and greases Lubricants
UV Cure

Specification

Part ID: 3115PP-B

Material: Polypropylene
Hub Colour: Amber
ID: 0.049" (1.24mm)
OD: 0.063" (1.60mm)
Tube Length: 1.5" - 38.10 mm
Details: Industrial grade, Silicone Free
Availability: * Ships in 24 Hours

Gauge Size Pack Size

Part Number

Price Buy
15 Gauge 50 3115PP-B £   per pack



  Gauge sizes 15 to 25 colour coded hubs
  Lengths of 0.5" can be cut if required
  Helix locking threads secure attachment
  Polypropylene will not scratch surface
  Ideal for cyanoacrylates and solvents
  Replacement for CTLL tips
  In packs of 50 or bulk quantities
  High quality dispensing tips
