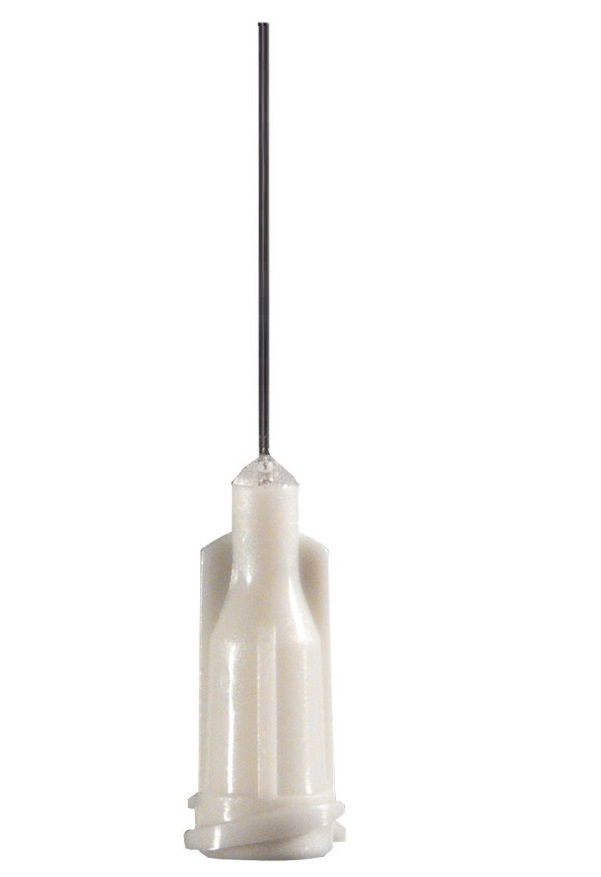

24Gauge Precision Dispensing Tip 1 Inch Long Tube ...
Precision stainless
steel burr-free tube to moulded colour coded polypropylene hub with
double-helix luer lock. Use this tip for dispensing adhesives,
solvents, glues, primers, activators and others. A shorter stainless
tube shaft length of 1.0" (25.4mm).
TE needle series consist of a stainless-steel shaft with a
double helix polypropylene hub. This premier line of dispensing
needles is burr-free, and electro-polished shaft for unobstructed
and consistent material flow. Suitable for dispensing most fluids,
adhesives and solvents.
Certified silicone-free,
chloride-free and industrial grade safe for use to 100 psi. Use
these tips for applying most liquids for high precision controlled
dispensing.
Tips are colour coded for gauge size. The tip
features a tapered internal design where the shaft meets the hub to
improve fluid flow and reduce any restriction. This allows for a
lower pressure to be used for dispensing liquids and pastes.
All products shipped are in sealed boxes or packs
that
include label with batch codes.
Adhesive Dispensing Ltd provide a wide range
of equipment options for dispensing almost all assembly fluids -
from watery liquids, solvents, primers and activators through to
thick pastes, sealants, silicones, gels and epoxies.
AD724100 Tips
Excludes
Carriage.
Lead Time: Ships Within 24 Hours
Summary: Dispensing tips
precision style with luer lock plastic hub and burr-free
stainless tube.
Item
Qty
Price
GBP
Add
AD724100PK
50
pack
AD724100P
500
pack
AD724100
1000
pack
Specifications
Materials: Polypro, Stainless
Steel Hub Colour: Grey Tube
Length: 25.4mm (1.00 Inch) Tip ID: 0.30mm (0.012 Inch) Tip
OD: 0.56mm (0.022Inch) Connection Type: Double Helix Luer Lock Maximum Pressure: 100 PSI (6.89 Bar) Flow Pattern: Straight Description: Tip for GeneralUse
Features: Silicone-Free, Industrial Grade
Pack Sizes: 50, 500 or 1000
Delivery: Products
shipped by courier on a tracked and
insured service for stock items. Products on a
longer
lead time or built to order will be sent as soon as available. Customers are informed of
ship dates. The items listed on this
page are held in stock.
Typical Applications:- Deposits
of adhesives, gels, solvents, solvent glues, epoxies, silicones, activators,
alcohols, liquids & general
adhesive applications.
