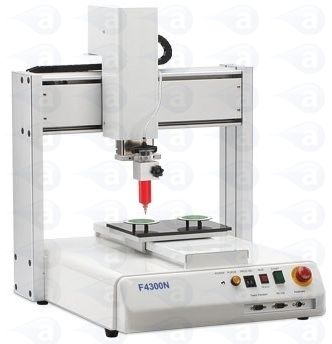

A cost effective desktop dispensing robot, the F4300N has a maximum working area of 300mm by 300mm and a height movement of 100mm. The 3 axis machine will move in X, Y and Z directions to provide repeated dots, smooth controlled beads, arcs, circles and many other patterns to substrates. Each robot is supplied ready to use with a teaching pendant, digital dispensing system, cables and connectors. Robots come with a 1 Year manufacturers warranty and are CE certified. Use this robot with most adhesives, epoxies, silicones, gels, glues and liquids.

The F4300N is a compact and economically priced benchtop robot. Designed for medical and laboratory type environments requiring a streamlined and easily maintained machine. This robot will support most light dispensing applications that require a high performance standard. The bench space reduction is an additional benefit. Programming is simply carried out by a teach-pendant (included) using the industry's leading dispensing software that walks the user through step-by-step instructions to create a sophisticated dispensing operation in minutes.

• Ideal for form-in-place gaskets, adhesives, potting, coating and filling

• High resolution 0.001mm

• Performs continuous path and point-to-point motions

• Quick fluid-purge button located on front panel

• Software tip alignment routine for quick program offsets when changing dispensing tips

• USB connector allows system updates and program interchange between robots

• Step-and-repeat functions _ program one object only for multiple identical objects

• On board 100 programs, 400,000 point memory capacity, 4,000 points per program

• Available without Teach Pendant for multiple installations
