Motor driven PC Pump valve for applying exact dots
or precise beads of most
adhesives and liquids. Operates from a digital
dispenser
with fluid feed from pressure pot, cartridge or syringe barrel. Positive
displacement technology means dispensing will not be affected by material viscosity change or
room temperature changes.
The

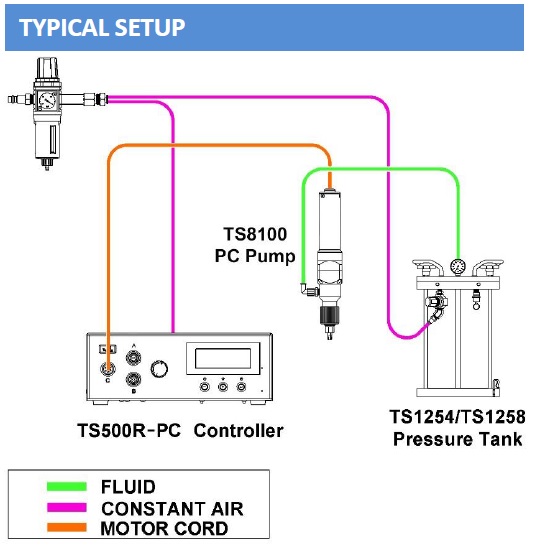

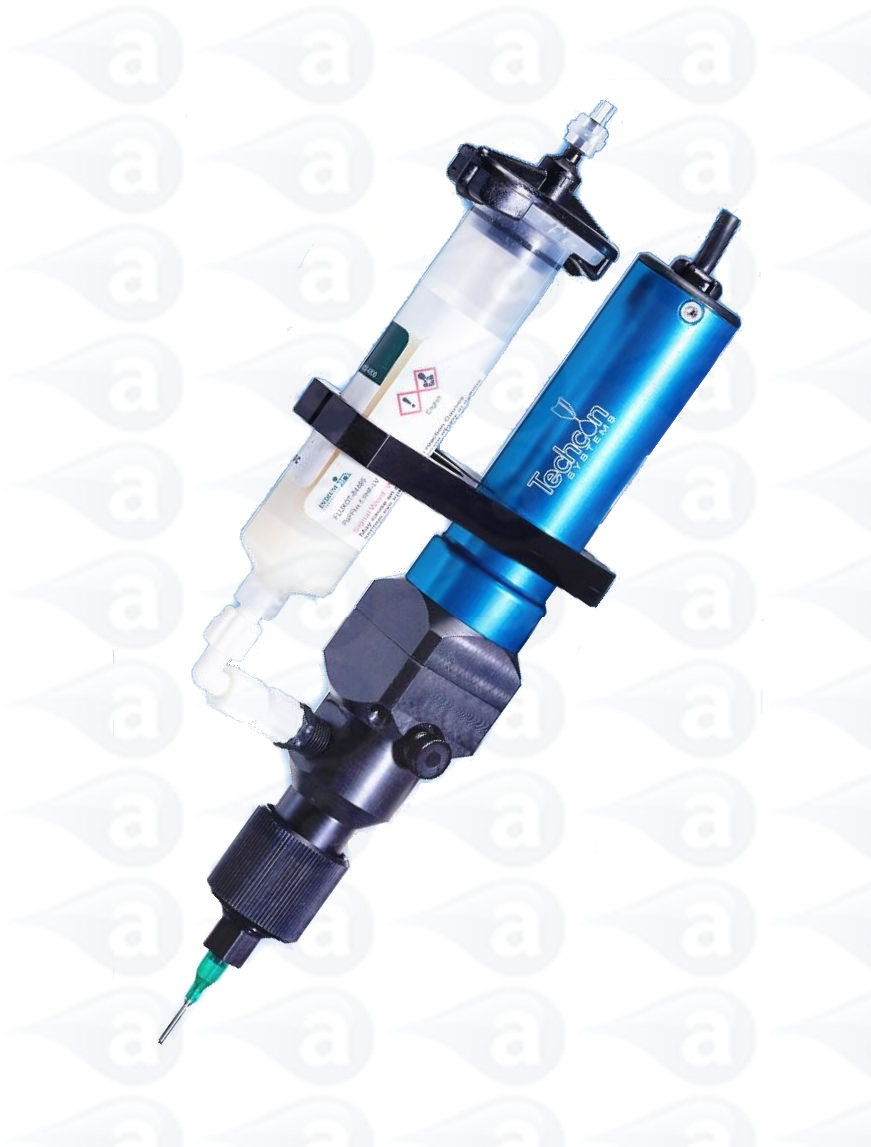

TS8100 Series Positive Displacement Pump is a continuously
volumetric dispense pump based on Progressive Cavity (PC)
technology. The pump is designed to dispense a wide range of fluids,
from low viscosity coatings to high viscosity greases.

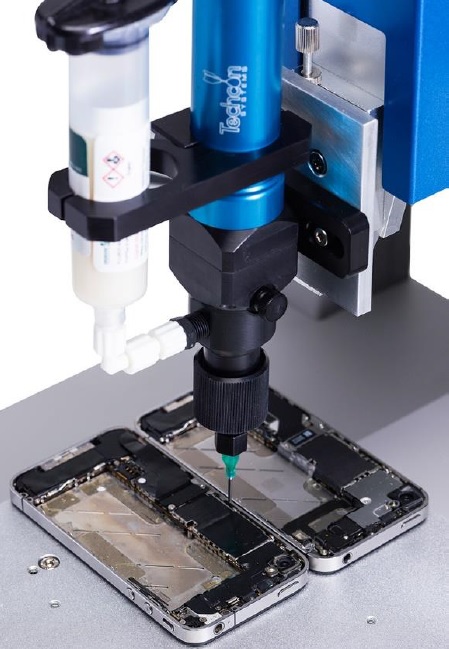

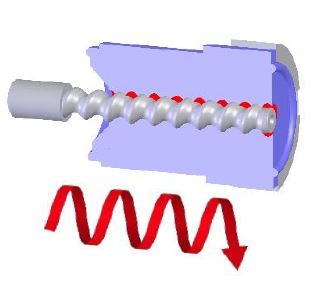

The PC
Pump uses a special stator and rotor design to provide consistent
dispensing output. The turning rotor moves the fluid in tightly
sealed cavities through the stators fluid chambers to create a
volumetric fluid flow that does not change the shape or size of the
fluid. Due to the PC Pumps unique dispensing technology, accuracy
and repeatability of +/- 1% is achievable.
The valve is shipped with the
following items: - Syringe bracket - Mounting bracket
kit - Luer lock fitting - Cleaning kit - Dispensing tip
selection pack
Key Features and Benefits:
- Volumetric, positive displacement - Accurate and repeatable up
to +/- 1% - No dripping with any viscosity fluid - Compatible
with abrasive materials - Does not damage or break fillers -
Easy to clean
Typical Applications: -
Under filling PCBA components - Encapsulation and Potting
applications - Applying lubrication on Automotive parts -
Dispensing pastes and flux
TS8100-200
GBP each ex. Vat. Excludes
Carriage. Lead Time: Usually Ships 14 Days
Summary: Motor driven
positive displacement PC Pump valve. For very high accuracy
deposits of solder pastes, die attach, SMT adhesives, thermal
compounds, pre-mixed and frozen epoxies, chip encapsulation and
liquids.
Item
Qty
Price
GBP
Add
TS8100-200
1
each
TS8100-200 Specifications
Wetted Parts: Delrin, PTFE, Stainless
Steel, UHMW Body Material: Aluminium
Valve Body Colour: Blye/ Black Size:
205mm L x 35mm Diameter Valve Weight: 380 Gram Fluid Viscosity Range:
1 to 300K CPS Repeatability (1): +/- 1% Self Sealing (2): 2
Bar (30 PSI) Dispense Volume Per Rotation: 0.047ml Average
Flow Rate Range: 0.47 to 4.46ml/minute Max Flow Rate Recommended (3):
3.38ml/minute
Minimum Shot Size: 0.0045ml Material Inlet: 1/8 Inch NPT Material Outlet: Male Luer Lock Fluid Flow Path: 90 Degree Warranty: 1 Year
(1) Volumetric dispensing as absolute deviation
per complete revolution and also depends on dispensing fluid. (2) For
fluid with viscosity of 1000 Cps or lower. The pump can handle up to 5.5 bar
for 300K Cps viscosity fluid. (3) This is the maximum flow rate that does
not shorten the stator work life
TS500R-PC Valve Controller
GBP each ex. Vat. Excludes
Carriage. Lead Time: Usually Ships 14 Days
Summary: Universal digital
valve controller with foot pedal control or remote I/O
connection. Make rapid pulses using the timer or steady mode. Memory
storage function. Low pressure alarm. Works with all
dispensing valves.Learn more...
Item
Qty
Price
GBP
Add
TS500R-PC
1
each
TS500R-PC Specifications
Type: Electro Pneumatic Timed Dispenser
Initiate: Electric Foot Switch or I/O Port Air Pressure Display: Digital
LCD Timer Display: Digital LCD Timer: 0.008 to 60 seconds Dispense Modes: Timed or Continuous Output Air Pressure: Up to 100 psi Input Air Pressure: 254 x 191 x 102 mm
Weight: 2.6kg (5.8lb)
Input Voltage: 110V - 220V AC Cycle Rate: Up to 1200 cycles/ minute
Timer Tolerances: +/- 0.001% Meets or Exceeds: CE, TUV-GS, NRTL Warranty: 1 Year
Delivery: Products
shipped by courier on a tracked and
insured service for stock items. Products on a
longer
lead time or built to order will be sent as soon as available. Customers are informed of
ship dates.
Typical Applications:-
Deposits
of pastes, die attach, SMT adhesives,
thermal compounds, pre-mixed and frozen epoxies, chip encapsulation,
fluxes and many other applications.
