Z Axis Rotary Dispensing Table
Automated dispensing station for making controlled deposits to components. The part in placed on the stand base and the syringe barrel indexes down. The timed deposit is made to the part and then the syringe barrel indexes up. Easy to adjust and achieve accurate dots.

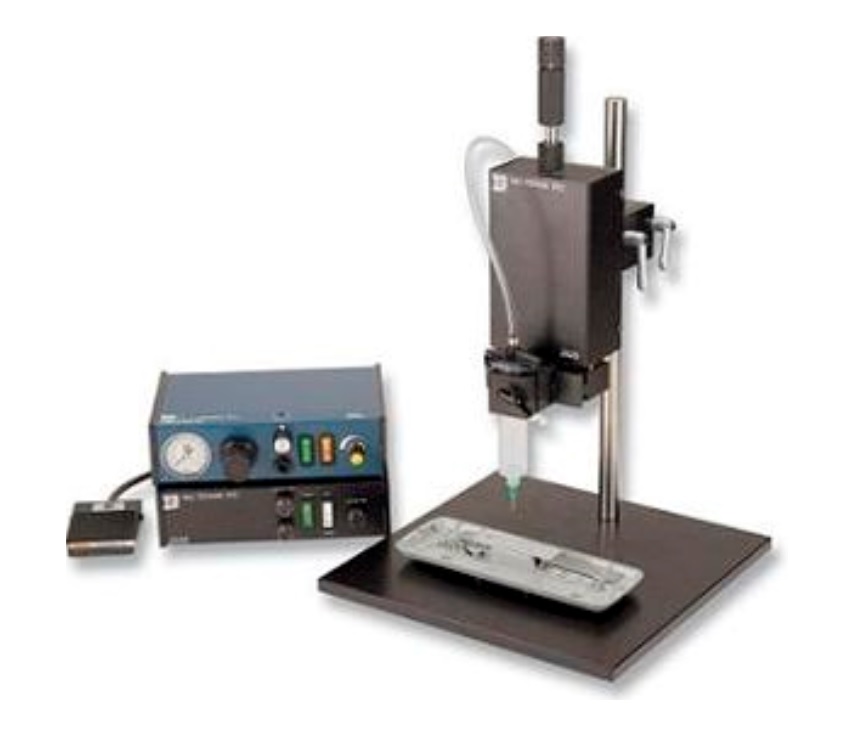

Z620 Auto Z Axis Dispenser Fisnar Adhesive Dispensing

Dispenses precise shots
Adjustable Z-axis including tilt control
Head auto indexes down & retracts
Full adjustment to head position
Uses 30cc and 55cc barrels
Variable shot size
Simple to set up and operate
Fully programmable for perfect dispensing

This compact cost effective dispenser sits on the work bench and requires an air input from any compressor or factory mains supply delivering 60 psi or above.

All products are industrial grade and are covered by our no-quibble One Year warranty.

Dispensers are supplied with user guide to assist with the initial setting up process. Customers can contact us for full support and advice in using this timed barrel rotary dispensing station.

The Z620 is an ideal solution for repetitive filling, potting or dotting to dispensing applications requiring Z-axis control. The z-axis system will consistently dispense material to a specific height and can be integrated into an automated line or conveyor fed station.

Other features include adjustable tilt, adjustable speed and time. The Z620 controller interfaces with the DSP501LF dispenser to complete the system.

The Z620 is supplied with airline hose and fittings kit to make connection easy. Includes a 30cc/ 55cc syringe barrels and piston pack and tip kit selection. Ready to use out of the box.

CE approved with a 1 Year Warranty. Please note that this system has been made obsolete.

End of line product. We have 1 system left in stock and available at a special discounted rate. Please add discount code X8847V at checkout to reduce price by 20%.

Z620 Z-Axis Dispenser
GBP   each ex. Vat.
Excludes carriage.
Lead Time:
Ships Within 24 Hours
  Summary: This air-powered syringe dispenser provides the user with high levels of control. 0-100 PSI air output for handling both watery liquids to thick pastes. We ship this with accessories ready to use out of the box. It is CE approved & includes a full user guide.
Product Code Qty Price GBP Add
Z620 1   each
An adjustable vacuum provides suck-back to the tip to prevent watery liquids from dripping. We recommend the use of an inline filter on the air adapter to the syringe when dispensing low viscosity fluids.

The dispenser has a timer which can be adjusted for repeat deposits, down to micro-dots. The Z620 is very simple to setup and operate and ideal for repeat applications.

This compact dispenser  is supplied with an airline hose and fittings kit to make connection easy. Ready to use out of the box. CE approved with 1 Year warranty.
  Part ID: Z620
  Type: Electro-pneumatic
  Dispenser Initiate: Electric footswitch,or via remote I/O
  Pressure Display: Analog gauge 0-100 psi
  Timer Display: Analog Rotary
  Vacuum Display: None (manually adjustable knob)
  Dispense Timer: 0.01 to 30 seconds
  Vertical Travel: 2.0 Inch (50.8mm)
  Output Pressure: To 100 PSI
  Input Pressure: 60-100 psi
  Size: 258 x 258 x 495 mm
  Weight: 10 kg
  Input Voltage: 220V AC
Warranty: 1 Year
  Meets or Exceeds: CE
  Mfg: Fisnar
Dispensers require clean and dry compressed air from most small compressors, a mains factory air supply or nitrogen. We recommend the use of a 5 micron air filter on the supply air into the dispenser. This will reduce oil, moisture and particles from the air.

No other maintenance is required as the dispenser applies liquid direct from a syringe barrel without being in direct contact with it. Syringe barrels and dispense tips are all disposable.

Items are shipped in the UK by a courier on a next day tracked and insured service for all items that are available from stock. Items on a lead time will be shipped as soon as they are available.

Dispensers will handle all viscosity liquids from thin solvents to thick pastes. Customers use these systems for a wide range of dispense projects. Common applications include solder paste, fluxes, silicones, gels, UV cure, Cyanoacrylate & more.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
