> Home > Equipment > Guns > Dual Guns > BG600-1




600ml Manual Cartridge Gun for Epoxy Dispensing

Industrial grade dispensing gun for 600ml size multi ratio dual component cartridges. Lightweight yet robust applicator for applications where an air supply is not available or for any field based operation. Suits most 600ml 1:1 and 2:1 ratio dual epoxy type cartridges.

600ml multi ratio dual component gun


For epoxies, silicones, polyurethanes, adhesives and other materials that are supplied in 600ml two part, side-by-side 1:1 or 2:1 ratio mix cartridges with the use of a static mixing nozzle.

The lightweight and durable construction of these dual guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive. This is a lightweight hand trigger operated cartridge gun supplied with parts to handle a variety of cartridge ratio's. The BG Series guns are covered by a 1 year warranty and feature a wear compensating device.

The dual cartridge is pushed into the pivoting gun retainer and clicked in place. The trigger is pressed pushing the rod onto the pistons within the cartridge. Material is pushed from the cartridge into the static mixer nozzle. Cartridge options for this gun are 300ml x 300ml or 300ml x 150ml.


More Info Part No. Size Type Ratio Details Price GBP Add
Manual Dual Cartridge Applicator Gun 600ml 1:1 BG600-1
Multi Ratio Dual Gun
600ml Manual Gun 1:1/2:1 Gun Only    each
200ml 1:1 Ratio Dual Cartridge System 600011
Dual Cartridges
600ml Cartridge Piston Sets 1:1 With Pistons    pack 50
Static Mixer Nozzle Adhesive Dispensing MC05-18
Static Mixer Nozzle
5.0mm 121mm Long x 18 Elements 1:1/2:1 Bell Mouth Top
White Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MC05-24
Static Mixer Nozzle
5.0mm 149mm Long x 24 Elements 1:1/2:1 Bell Mouth Top
White Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MC06-24
Static Mixer Nozzle
6.0mm 185mm Long x 24 Elements 1:1/2:1 Bell Mouth Top
White Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MC06-32
Static Mixer Nozzle
6.0mm 234mm Long x 32 Elements 1:1/2:1 Bell Mouth Top
White Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MC08-18
Static Mixer Nozzle
8.0mm 177mm Long x 18 Elements 1:1/2:1 Bell Mouth Top
White Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MC08-24
Static Mixer Nozzle
8.0mm 223mm Long x 24 Elements 1:1/2:1 Bell Mouth Top
White Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MC10-18
Static Mixer Nozzle
10.0mm 214mm Long x 18 Elements 1:1/2:1 Bell Mouth Top
White Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MCHX08-18
Static Mixer Nozzle
8.0mm 182mm Long x 18 Elements 4:1/10:1 Bell Mouth Top
Orange Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MCHX08-24
Static Mixer Nozzle
8.0mm 230mm Long x 24 Elements 4:1/10:1 Bell Mouth Top
Orange Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MCHX10-12
Static Mixer Nozzle
10.0mm 155mm Long x 12 Elements 4:1/10:1 Bell Mouth Top
Orange Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MCHX10-18
Static Mixer Nozzle
10.0mm 215mm Long x 18 Elements 4:1/10:1 Bell Mouth Top
Orange Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MCHX10-24
Static Mixer Nozzle
10.0mm 275mm Long x 24 Elements 4:1/10:1 Bell Mouth Top
Orange Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MCHX13-12
Static Mixer Nozzle
13.0mm 192mm Long x 12 Elements 4:1/10:1 Bell Mouth Top
Orange Element
   pack 100

Product Pages


BG600-1 Gun Features

  Works with 600ml dual cartridges
  26:1 thrust ratio
  Easily converts in seconds
  Snap in/ snap out push discs
  Precision sintered friction plate
  Easy release star-burst grip plate
  Hammered finish zinc alloy handle
  Slide in/ easy side cartridge load
  Only 1.4 KG Weight
  Available direct from stock

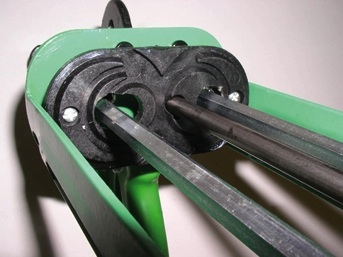

300ml dual epoxy manual applicator gun

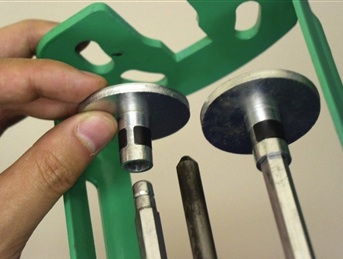

300ml dual epoxy manual applicator gun
