Needle Tip Kit in Presentation Case
Part Code
DCK500 |
|
Our precision
components provide safe and leak free fluid dispensing from syringe barrels,
valves and cartridges.
Precision tips are suitable for use with most adhesives, solvents,
pastes, gels, silicones and other assembly fluids. This kit is in a
presentation case and comes with a selection of dispensing tips. |
|
 |
|
Use DCK500 selection of 144 assorted
dispensing barrels, pistons caps and tips in this kit include
the blunt end, the blunt end angled general purpose dispensing
tips, brush tips along with the TTNE taper tips and tip caps.
Includes selection of Teflon Lined tips, 45 and 90 degree bend
tips. Each tray receptacle comes with five samples of each
product.

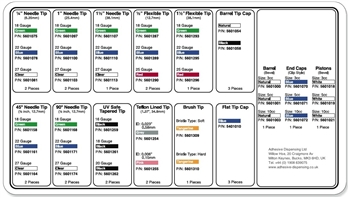

Dual level plastic box with printed card for
easy product identification. All tips feature double helix
locking thread for safety and are safe to use to 100 psi. Hubs
are colour filtered plastic for UV protection. All components
are silicone and chloride free.
Suitable for accurately dispensing most
fluids, liquids, pastes, gels, silicones, epoxies, adhesives and solvents. Certified silicone-free,
chloride-free and industrial grade safe up to 100 psi. Luer lock for
twist-on/ twist-off attachment.
All dispensing tips are colour coded for gauge size. Tips feature a tapered
internal design where the tube meets the hub to improve fluid flow
and reduce restriction and back pressure. This allows for a lower pressures to be used
when dispensing higher viscosity gels and pastes.
Use these tips
with luer lock and luer slip
syringes,
air
powered syringe
barrels,
bottles,
fittings
and
dispensing shot
valves.
Silicone-free
guarantee
ensures
that sensitive adhesives applied with these parts will not become
contaminated during their use.
All products shipped are in sealed boxes or packs that
include label with batch codes.
Adhesive Dispensing Ltd
provide a wide range of equipment options for dispensing
almost all assembly fluids - from watery liquids, solvents,
primers and activators through to thick pastes, sealants,
silicones, gels and epoxies. |
|
Specifications:
Gauge Sizes: 14 to 30
Hub Colours: Assorted - by Gauge
Size
Type: General Needle Tip, Tapered, Brush
Tube Length: 0.50, 1.25"
Connection Type: Double Helix Luer Lock
Maximum Pressure: 100 PSI (6.89 Bar)
Flow Pattern: Straight
Rating: Silicone-Free, Chloride-Free, Industrial Grade
Commodity Tariff Code:
90289090
Brand: Fisnar
Precision Burr
Free Tubing
0.5", Bent, Polypro, Teflon, Tapered Tips,
Brush
Protective Case
Delivery: Products shipped by courier on a
tracked and insured service for stock items. Products on a
longer lead time or built to order will be sent as soon as
available. Customers are informed of ship dates should there
be a slight delay.
Typical Applications:-
Deposits of liquids, gels, solder paste, deposits of solder flux, grease to
bearings, potting components with epoxy, RTV to edge seams,
silicone shots to bond products, gasket sealant repair,
aircraft maintenance work, braze pastes, general adhesive
applications, solvent glues. |
|
|
Suitable for ... |
 |
General Adhesives
& Glue |
 |
Silicones
& Sealants |
 |
Epoxies,
PUs
& Resins |
 |
Liquid Gel Gaskets |
 |
Greases & Lubricants |
 |
UV Cure
Adhesives |
 |
Liquids & Fluids |
|
|
|
DCK500 Tip Kit in Hard Case |
|
More Info |
Part Code |
Description |
Price GBP |
Add |
|
 |
|
DCK500 |
Tip Sheet |
|
Barrel Sheet |
|
Full Catalogue |
|
| Materials:
PP, PE, SS, Teflon |
| Type: Blunt,
Tapered, Polypro, TLC |
| Gauge Sizes:
14 to 30 |
| Commodity
Code: 90289090 |
|
Brand: Fisnar |
|
in stock |
|
 each |
 |
|
|
|
Delivery:
Products shipped by courier on a tracked and
insured service for stock items. Products on a
longer
lead time or built to order will be sent as soon as available. Customers are informed of
ship dates. |
|
|
Gauge
|
Length |
Colour |
Qty |
Description |
Part Code |
|
18 |
0.25" |
Green |
2 |
Precision
tip straight shaft |
718025PK |
|
22 |
0.25" |
Blue |
2 |
Precision
tip straight shaft |
722025PK |
|
27 |
0.25" |
Clear |
2 |
Precision
tip straight shaft |
722025PK |
|
|
|
|
|
|
|
|
14 |
0.50" |
Olive |
5 |
Precision
tip straight shaft |
714050PK |
|
15 |
0.50" |
Amber |
5 |
Precision
tip straight shaft |
715050PK |
|
16 |
0.50" |
Black/ Grey |
5 |
Precision
tip straight shaft |
716050PK |
|
18 |
0.50" |
Green |
5 |
Precision
tip straight shaft |
718050PK |
|
20 |
0.50" |
Pink |
5 |
Precision
tip straight shaft |
720050PK |
|
21 |
0.50" |
Purple |
5 |
Precision
tip straight shaft |
721050PK |
|
22 |
0.50" |
Blue |
5 |
Precision
tip straight shaft |
722050PK |
|
23 |
0.50" |
Orange |
5 |
Precision
tip straight shaft |
723050PK |
|
25 |
0.50" |
Red |
5 |
Precision
tip straight shaft |
725050PK |
|
27 |
0.50" |
Clear |
5 |
Precision
tip straight shaft |
727050PK |
|
30 |
0.50" |
Lavender |
5 |
Precision
tip straight shaft |
730050PK |
|
|
|
|
|
|
|
|
18 |
1.00" |
Green |
2 |
Precision
tip straight shaft |
718100PK |
|
22 |
1.00" |
Blue |
2 |
Precision
tip straight shaft |
722100PK |
|
27 |
1.00" |
Clear |
2 |
Precision
tip straight shaft |
727100PK |
|
|
|
|
|
|
|
|
18 |
1.50" |
Green |
2 |
Precision
tip straight shaft |
718150PK |
|
22 |
1.50" |
Blue |
2 |
Precision
tip straight shaft |
722150PK |
|
27 |
1.50" |
Clear |
2 |
Precision
tip straight shaft |
727150PK |
|
|
|
|
|
|
|
|
18 |
0.50" |
Green |
2 |
Flexible tip polypro shaft |
3118PPS-B |
|
22 |
0.50" |
Blue |
2 |
Flexible tip polypro shaft |
3122PPS-B |
|
25 |
0.50" |
Red |
2 |
Flexible tip polypro shaft |
3125PPS-B |
|
|
|
18 |
1.50" |
Green |
2 |
Flexible tip polypro shaft |
3118PP-B |
|
22 |
1.50" |
Blue |
2 |
Flexible tip polypro shaft |
3122PP-B |
|
25 |
1.50" |
Red |
2 |
Flexible tip polypro shaft |
3125PP-B |
|
|
|
18 |
0.50" |
Green |
2 |
Precision
tip 45 degree bend |
718050B45PK |
|
22 |
0.50" |
Blue |
2 |
Precision
tip 45 degree bend |
722050B45PK |
|
25 |
0.50" |
Red |
2 |
Precision
tip 45 degree bend |
725050B45PK |
|
|
|
18 |
0.50" |
Green |
2 |
Precision
tip 90 degree bend |
718050B90PK |
|
22 |
0.50" |
Blue |
2 |
Precision
tip 90 degree bend |
722050B90PK |
|
25 |
0.50" |
Red |
2 |
Precision
tip 90 degree bend |
725050B90PK |
|
|
|
21 |
1.00" |
Grey |
2 |
Teflon Lined Crimped Tip |
5121TLC-B |
|
25 |
1.00" |
Pink |
2 |
Teflon Lined Crimped Tip |
5125TLC-B |
|
|
|
15 |
0.50" |
Amber |
1 |
Brush Tip Soft Bristle |
5601309 |
|
15 |
0.50" |
Amber |
1 |
Brush Tip Hard Bristle |
5601310 |
|
|
|
14 |
1.25" |
Olive |
5 |
Smooth flow
tapered tip |
5601269 |
|
16 |
1.25" |
Grey |
5 |
Smooth flow
tapered tip |
5601270 |
|
18 |
1.25" |
Green |
5 |
Smooth flow
tapered tip |
5601271 |
|
20 |
1.25" |
Pink |
5 |
Smooth flow
tapered tip |
5601272 |
|
22 |
1.25" |
Blue |
5 |
Smooth flow
tapered tip |
5601273 |
|
25 |
1.25" |
Red |
5 |
Smooth flow
tapered tip |
5601274 |
|
|
|
3cc |
Barrel |
Clear |
1 |
Natural barrel luer lock |
7030LL1NPK |
|
5cc |
Barrel |
Clear |
1 |
Natural barrel luer lock |
7050LL1NPK |
|
10cc |
Barrel |
Clear |
1 |
Natural barrel luer lock |
7100LL1NPK |
|
|
|
3cc |
Piston |
White |
1 |
White PE wiper piston |
7030009WPK |
|
5cc |
Piston |
White |
1 |
White PE wiper piston |
7050009WPK |
|
10cc |
Piston |
White |
1 |
White PE wiper piston |
7100009WPK |
|
|
|
3cc |
End Cap |
Orange |
1 |
Snap-on end cap seal |
AD903-ECO |
|
5cc |
End Cap |
Orange |
1 |
Snap-on end cap seal |
AD905-ECO |
|
10cc |
End Cap |
Orange |
1 |
Snap-on end cap seal |
AD910-ECO |
|
|
|
n/a |
n/a |
Orange |
3 |
Tip cap seal |
7015LLPK |
|
n/a |
n/a |
Black |
3 |
Tip cap seal |
7015LLBPK |
|
n/a |
n/a |
Blue |
3 |
Tip cap seal |
AD900-BTC |
|
|
|
 |
 |
|
|
|
DCK700 Tip Kit in Hard Case |
|
More Info |
Part Code |
Description |
Price GBP |
Add |
|
|
|
|
DCK700 |
|
Tip Sheet |
|
Barrel Sheet |
|
Full Catalogue |
|
| Materials:
PP, PE, SS, Teflon |
| Type: Blunt,
Tapered, Polypro, TLC |
| Gauge Sizes:
14 to 30 |
| Commodity
Code: 90289090 |
|
Brand: Adhesive Dispensing Ltd |
|
in stock |
|
each |
|
|
|
DCK600 Tip Kit in Hard Case |
|
More Info |
Part Code |
Description |
Price GBP |
Add |
|
|
|
|
DCK600 |
|
Tip Sheet |
|
Barrel Sheet |
|
Full Catalogue |
|
| Materials:
PP, PE, SS, Teflon |
| Type: Blunt,
Tapered, Polypro, TLC |
| Gauge Sizes:
14 to 30 |
| Commodity
Code: 90289090 |
|
Brand: Adhesive Dispensing Ltd |
|
in stock |
|
each |
|
|
|
TN00DKIT Tip Kit in Hard Case |
|
More Info |
Part Code |
Description |
Price GBP |
Add |
|
|
|
|
TN00DKIT |
|
Tip Sheet |
|
Barrel Sheet |
|
Full Catalogue |
|
| Materials:
PP, PE, SS, Teflon |
| Type: Blunt,
Tapered, Polypro, TLC |
| Gauge Sizes:
14 to 30 |
| Commodity
Code: 90289090 |
|
Brand:
Techcon |
|
in stock |
|
each |
|
|
|
Standard Barrel and Piston Kits |
 |
|
Industrial grade barrels conveniently
packaged with wiper pistons in the same box. Natural (Clear), Amber
(Tint) or Black (Opaque) barrels made from high density
polypropylene. Standard PE pistons, flat walled, easy flow and
rubber type. Barrel sizes 3cc, 5cc, 10cc, 30cc, 55cc.
Read more... |
|
|
Big Barrel and Piston Kits |
 |
|
For larger volume dispenser, we stock big barrels in
sizes 100cc, 200cc, 300cc, 400cc and 500cc. The barrel is made from
high density clear polypropylene with PE wiper pistons. Kit includes
an air cap, gasket and 5ft. airline hose with connector to dispenser.
Read more... |
|
|
|
|
|
|
|
|
|
|
|
Air-Powered Dispensers * Industrial Dispensing Components *
Precision Dispense Valve Systems * Bench Robots |
|
Adhesives * Packaged Components * Techkits * RatioPacks *
Hingepacks * Syringe Barrels * Cartridges * Nozzles |
|
Prices are
in GBP pounds. Vat is charged on all UK orders. We provide VAT
invoices with all transactions. Vat is not charged on any orders placed
with us that ship outside the UK and EU. No VAT is charged for any
orders placed for shipment to the EU only if a valid company VAT number
is provided to us at time of order or prior to shipping. Products
are covered by a 12-month warranty against all faults and malfunction.
All orders placed online are encrypted for total
safety and security. Additional encryption now protects all of the
web pages on this site. Please read our
privacy
agreement for details of how we conform to GDRP. We can also
process any phone or fax payments by credit and debit cards.
Please contact our accounts department if you would like to apply for a
30 day credit account with us.
Disclaimer: While reasonable efforts have been made
to ensure all information on this website is
accurate, Adhesive Dispensing Ltd. do not assume
responsibility for any errors or omissions. All
specifications, illustrations, data and prices are
subject to change without notice.
Copyright 2024 Adhesive
Dispensing Ltd. All rights reserved.
|
|
|
|
|
|
|
