50ml Pneumatic Cartridge Gun for Epoxy Dispensing
Cartridge gun dispensers are designed for the controlled application of two component materials direct from 50ml dual dispensing cartridges. This gun includes an easy to use adjustable regulator to ensure a consistent flow of adhesive and fast air release. This is rod driven so provides a very controlled pressure on the dual pistons in the cartridge.
EDS408M 50ml Pneumatic Dual Cartridge Gun

For epoxies, silicones, polyurethanes, adhesives and other materials that are supplied in 50ml two part, side-by-side 1:1, 2:1, 4:1 and 10:1 ratio mix cartridges with the use of a static mixing nozzle.

The lightweight and durable construction of the pneumatic dispenser guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive. This gun features a built-in adjustable air regulator to set flow rates.

Connect this applicator to an air supply using the 1/4" BSP thread or order one of our airline hoses. The dual cartridge is pushed into the pivoting gun retainer and clicked in place. Air pressure is dispensed onto the rods pushing down on the pistons within the cartridge. Guns fit comfortably into the hand for use over long periods of time and minimum risk of repetitive strain injury.

All products are CE approved product with a 1 Year warranty. This gun works with all pre-filled 50ml adhesive cartridges 1:1 ratio. Items are shipped using a courier on a tracked and insured service with products that are available from stock. Items on a longer lead time will be shipped as soon as they are made available.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Specifications

Materials: Nylon, Polypropylene, Steel
Colour: Silver/ Black
Cartridge Size: 50ml 1:1, 2:1. 4:1. 10:1
Gun Weight: 0.85kg
Gun Length: 328mm
Gun Height: 193mm
Maximum Pressure: 100 PSI
Thrust: 1.5kN at 100 PSI
Air Connection: 1/4" BSP Male Thread
Warranty: 1 Year
Commodity Code: 90289090
Origin: United Kingdom

Pack Size: 1
Delivery: Products shipped by courier on a tracked and insured service for stock items. Products on a longer lead time or built to order will be sent as soon as available. Customers are informed of ship dates.

Typical Applications: - For controlled deposits of epoxy resins, two-part silicones, PU polyurethanes, potting compounds, doming resins and many other 2-component and mixed materials.


Use with bayonet type static mixer nozzles

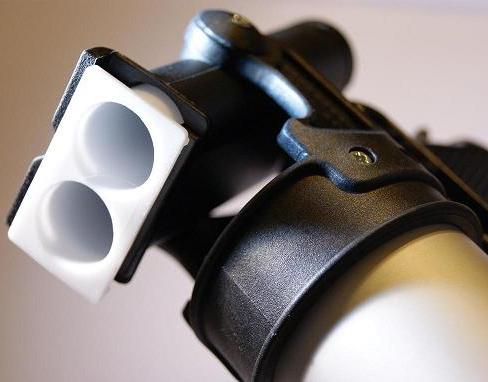

Quick cartridge load


More Info Downloads

Description

Price GBP Add
2K ADL Catalogue
Mixpac Catalogue
Dispensing PDF
ADL Catalogue
2K Applicators
Part Code: EDS408M
Mix Ratios: 1:1,2:1.4:1.10:1
Size: 50ml
Colour: Silver/ Black
Gun Type: Pneumatic
Lead Time: Ships 24 Hours
  each

  Fits 50ml dual epoxy cartridges

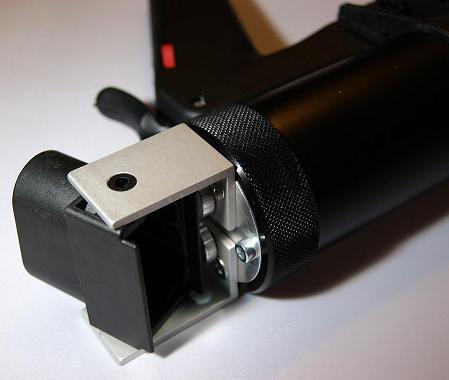

  Easy cartridge load/unload mechanism
  Controlled fast deposit or consistent beads
  Lightweight yet very robust construction
  Fast air exhaust reduces drips or ooze
  Adjustable air regulator for flow rate
  Current Lead Time 24 Hours

Delivery: Products shipped by courier on a tracked and insured service for stock items. Products on a longer lead time or built to order will be sent as soon as available. Customers are informed of ship dates.

Typical Applications:- Deposits of epoxy resins, silicones, potting compounds, polyurethanes and other 2-part materials.

A-System Cartridge and Piston Sets
A-System 50ml Dual Cartridge Sets Sulzer Mixpac
The A-system cartridges use a bayonet twist-on/ twist-off nozzle attachment. Available with either air-vented wiper pistons or lip-seal pistons with a rubber O-ring outer. Cartridge body is made of white high density polypropylene. Select by mix ratio and by piston type. Click the links below for more product details and pack size options. Commodity tariff code 39269097.
Size Mix Ratio Piston Type Part Code Lead Time Price GBP Add
50ml 1:1 Air Vented 451000-01 Ships 24 Hours    pk/50
50ml 1:1 Lip-Seal 451000-02 Ships 24 Hours    pk/50
75ml 1:1 Air Vented 475100-01 Ships 72 Hours    pk/50
75ml 1:1 Lip-Seal 475100-02 Ships 72 Hours    pk/50
100ml 1:1 Air Vented 100011 Ships 24 Hours    pk/50
50ml 2:1 Air Vented 452013-01 Ships 24 Hours    pk/50
50ml 2:1 Lip-Seal 452013-02 Ships 24 Hours    pk/50
50ml 4:1 Air Vented 454000-01 Ships 24 Hours    pk/50
50ml 4:1 Lip-Seal 454000-02 Ships 24 Hours    pk/50
50ml 10:1 Lip-Seal 454010-01 Ships 24 Hours    pk/50

A-System Bayonet Mixer Nozzles
A-system static mixer nozzles Sulzer Mixpac
The A-system nozzles use a bayonet twist-on/ twist-off attachment to the cartridge. Available in a wide range of diameters and lengths. Helical round version or quadro square body with green elements. Nozzles outer is made of natural high density polypropylene. Click the links below for more product details and pack size options. Commodity tariff code 39269097.
Dia. Length Element Ratio Colour Code Lead Time Price GBP Add
3.0mm 34mm 7 1:1/2:1 White MA3.0-07S 24 Hours    pk/100
3.0mm 51mm 13 1:1/2:1 White MA3.0-13S 24 Hours    pk/100
3.0mm 63mm 17 1:1/2:1 White MA3.0-17S 24 Hours    pk/100
4.0mm 66mm 13 1:1/2:1 White MA4.0-13S 24 Hours    pk/100
4.0mm 82mm 17 1:1/2:1 White MA4.0-17S 24 Hours    pk/100
5.4mm 56mm 7 1:1/2:1 White MA5.4-07S 24 Hours    pk/100
5.4mm 85mm 13 1:1/2:1 White MA5.4-13S 24 Hours    pk/100
5.4mm 104mm 17 1:1/2:1 White MA5.4-17S 24 Hours    pk/100
5.4mm 124mm 21 1:1/2:1 White MA5.4-21S 24 Hours    pk/100
6.3mm 97mm 12 1:1/2:1 White MA6.3-12S 24 Hours    pk/100
6.3mm 128mm 17 1:1/2:1 White MA6.3-17S 24 Hours    pk/100
6.3mm 153mm 21 1:1/2:1 White MA6.3-21S 24 Hours    pk/100
6.3mm 153mm 21 1:1/2:1 White MA6.3-21L 24 Hours    pk/100
5.3mm 83mm 16 1:1/2:1 Green MAQ05-16L 24 Hours    pk/100
5.3mm 115mm 24 1:1/2:1 Green MAQ05-24L 24 Hours    pk/100
4.0mm 82mm 17 4:1/10:1 Orange MAHX04-17T 24 Hours    pk/100
5.4mm 104mm 17 4:1/10:1 Orange MAHX05-17T 24 Hours    pk/100

B-System Cartridge and Piston Sets
The B-system cartridges use a cap nozzle attachment. Available with either air-vented wiper pistons. Cartridge body is made of white high density polypropylene. Select by mix ratio. Click the links below for more product details and pack size options. Commodity tariff code 39269097.
Size Mix Ratio Piston Type Part Code Lead Time Price GBP Add
50ml 1:1 Polypropylene 112511 Ships 24 Hours    pk/50
50ml 1:1 Polyamide 116357 2-3 Weeks    pk/50
50ml 2:1 Polypropylene 114099 Ships 24 Hours    pk/50
50ml 2:1 Polyamide 116354 2-3 Weeks    pk/50
50ml 4:1 Polypropylene 116421 Ships 24 Hours    pk/50
50ml 4:1 Polyamide 116422 2-3 Weeks    pk/50
50ml 10:1 Polypropylene 116423 Ships 24 Hours    pk/50
50ml 10:1 Polyamide 116424 2-3 Weeks    pk/50

B-System Bayonet Mixer Nozzles
B-System Static Mixer Nozzles Sulzer Mixpac
The B-system nozzles use a locking cap attachment to the cartridge. Available in a wide range of diameters and lengths. Helical round version or quadro square body with green elements. Nozzles outer is made of natural high density polypropylene. S have stepped end. T have tapered end. L have luer end. D have open end. Click the links below for more product details and pack size options. Commodity tariff code 39269097.
Dia. Length Element Ratio Colour Code Lead Time Price GBP Add
3.2mm 64mm 12 1:1/2:1 White MBH03-12S 24 Hours    pk/100
3.2mm 58mm 12 1:1/2:1 White MBH03-12D 24 Hours    pk/100
3.2mm 76mm 16 1:1/2:1 White MBH03-16L 24 Hours    pk/100
3.2mm 77mm 16 1:1/2:1 White MBH03-16S 24 Hours    pk/100
4.2mm 70mm 12 1:1/2:1 White MBH04-12D 2-3 Weeks    pk/100
4.2mm 87mm 16 1:1/2:1 White MBH04-16D 24 Hours    pk/100
4.2mm 96mm 16 1:1/2:1 White MBH04-16S 24 Hours    pk/100
5.4mm 60mm 6 1:1/2:1 White MBH05-06T 2-3 Weeks    pk/100
5.4mm 83mm 12 1:1/2:1 White MBH05-12D 2-3 Weeks    pk/100
5.4mm 112mm 14 1:1/2:1 White MBH05-14D 24 Hours    pk/100
5.4mm 112mm 16 1:1/2:1 White MBH05-16T 2-3 Weeks    pk/100
5.4mm 133mm 20 1:1/2:1 White MBH05-20T 24 Hours    pk/100
6.5mm 89mm 11 1:1/2:1 White MBH06-11D 2-3 Weeks    pk/100
6.5mm 131mm 16 1:1/2:1 White MBH06-16T 24 Hours    pk/100
6.5mm 157mm 20 1:1/2:1 White MBH06-20T 2-3 Weeks    pk/100
5.3mm 91mm 16 1:1/2:1 Green MBQ05-16L 24 Hours    pk/100
5.3mm 122mm 24 1:1/2:1 Green MBQ05-24L 2-3 Weeks    pk/100
3.2mm 77mm 16 4:1/10:1 Orange MBHX03-16S 24 Hours    pk/100
4.2mm 87mm 16 4:1/10:1 Orange MBHX04-16D 24 Hours    pk/100
4.2mm 96mm 16 4:1/10:1 Orange MBHX04-16S 24 Hours    pk/100
5.4mm 83mm 12 4:1/10:1 Orange MBHX05-12D 24 Hours    pk/100
5.4mm 111mm 16 4:1/10:1 Orange MBHX05-16T 24 Hours    pk/100
5.4mm 133mm 20 4:1/10:1 Orange MBHX05-20T 24 Hours    pk/100
6.5mm 121mm 16 4:1/10:1 Orange MBHX06-16D 24 Hours    pk/100
6.5mm 131mm 16 4:1/10:1 Orange MBHX06-16T 24 Hours    pk/100
6.5mm 157mm 20 4:1/10:1 Orange MBHX06-20T 24 Hours    pk/100
5.3mm 91mm 16 4:1/10:1 Orange MBQX05-16L 24 Hours    pk/100
5.3mm 122mm 24 4:1/10:1 Orange MBQX05-24L 24 Hours    pk/100

Manual Dual Cartridge Dispenser Guns
ABM-25M1 50ml 1:1 2:1 Manual Dispenser Gun   We stock a wide range of manual dispenser guns for use with the A-system and B-system dual cartridges on every mix ratio.

These are lightweight industry standard applicators that are easy to load and simple to use. Ideal for field work, repair work or low volume assembly applications. Click the links below for more product details and options. Commodity tariff code 90289090.
Size Mix Ratio Gun Type Part Code Lead Time Price GBP Add
50ml 1:1/2:1 Manual ABM-25M1 Ships 24 Hours    each
50ml 1:1/2:1 Manual ABM-25MS Ships 24 Hours    each
75ml 1:1 Manual ABM-75M1 Ships 24 Hours    each
100ml 1:1 Manual ABM-100M1 Ships 24 Hours    each
50ml 2:1 Manual ABM-25M2 Ships 24 Hours    each
50ml 4:1 Manual ABM-25M4 Ships 24 Hours    each
50ml 10:1 Manual ABM-25M10 Ships 24 Hours    each

Pneumatic Dual Cartridge Dispenser Guns
ADCBA-25D Pneumatic 50ml Dual Dispenser Gun   We stock a wide range of pneumatic dispenser guns for use with the A-system dual cartridges on every mix ratio. Below options are for the different ratio dispensers to suit the 50ml dual component cartridges.

These are powerful industry standard applicators that are easy to load and simple to use. Ideal for assembly work, repair work or higher volume dispensing applications. Click the links below for more product details and options. Commodity tariff code 90289090.
Size Mix Ratio Gun Type Part Code Lead Time Price GBP Add
50ml 1:1/2:1 Pneumatic EDS408M Ships 24 Hours    each

Battery Rechargeable Dual Cartridge Dispenser Guns
ADCBE-50 50ml Dual Cartridge Battery Gun Dispenser   We stock a wide range of battery rechargeable dispenser guns for use with the A-system dual cartridges on every mix ratio. Below options are for different ratio dispensers to suit the 50ml dual component cartridges.

These are lightweight industry standard applicators that are easy to load and simple to use. Ideal for field work, repair work or higher volume assembly applications. Click the links below for more product details and options. Commodity tariff code 90289090.
Size Mix Ratio Gun Type Part Code Lead Time Price GBP Add
50ml 1:1/2:1 Battery ADCBE-50 Ships 24 Hours    each
50ml 4:1 Battery ADCBE-50-4 Ships 24 Hours    each
50ml 10:1 Battery ADCBE-50-10 Ships 24 Hours    each

Pneumatic Dual Cartridge Retainers for use with Dispensers
50ml Dual Cartridge Pneumatic Dispensers   Use these rod-driven pneumatic 50ml dual cartridge systems with any pneumatic dispenser that has a vacuum suckback feature. Once connected to the dispenser, this system allows the user to make precise repeat dots of epoxy or controlled beads.

Options for the 50ml different ratio dual cartridges. Lightweight and easy to use. The vacuum on the dispenser pulls the rods back when the cartridge tube is empty. Commodity tariff code 90289090.
Size Mix Ratio Gun Type Part Code Lead Time Price GBP Add
50ml 1:1 Pneumatic ADV-50-11 Ships 24 Hours    each
50ml 2:1 Pneumatic ADV-50-21 Ships 24 Hours    each
50ml 4:1 Pneumatic ADV-50-41 Ships 24 Hours    each
50ml 10:1 Pneumatic ADV-50-10 Ships 24 Hours    each



Gun Dispensers for Dual Component Cartridges
    Gun dispensers for use with 50ml, 150ml 200ml, 300ml, 400ml, 600ml, 1200ml and 1500ml dual cartridge components. Manual, pneumatic and battery rechargeable versions. For mix ratios 1:1, 2:1, 4:1 and 10:1. Rod driven applicators for controlled deposits with material mess or waste. Easy to use products supplied with user guides. Read more...

Dual Component Cartridges and Static Mixer Nozzles
    Industrial twin tube cartridges for use with epoxy resins, polyurethanes, silicones and doming resins. In sizes 2.5ml, 3ml, 5ml, 10ml, 25ml, 50ml, 200ml, 400ml and 600ml. With wiper pistons vented or lip-seal. In white polyethylene colour. Different versions are available direct from stock. Wide range of mix nozzles are available. Read more...

Static Mixer Nozzles
Static Mixer Nozzle Green Square   We stock a wide range of static mix nozzles for use with two component cartridges and high pressure machine mixers. To suit the different dual cartridge sizes of K-System, A-System, B-System, C-System, F-System. And machines types ME and MS series mixers. As well as the square Quadro mixers and luer lock nozzles. Read more...

Air Powered Syringe Barrel Dispensers
Adhesive dispensers   We stock a wide range of pneumatic dispensers for use with 3cc, 5cc, 10cc, 30cc, 55cc size syringe barrels and new 100cc, 200cc, 300cc, 400cc and 500cc big barrels. Dispensers can provide timed shots of liquids and paste eliminating hand fatigue, inconsistency and mess. Select from analog timed dispensers to full digital with memory and auto repeat. Read more...


  COMPANY INFORMATION SUPPORT CUSTOMER SERVICE
  About Us Solutions Carriage
  Shipping & Returns FAQ's Terms & Conditions
  Privacy Site Map Help
  Contact Us Assist Accounts


Air-Powered Dispensers * Industrial Dispensing Components * Precision Dispense Valve Systems * Bench Robots

Adhesives * Packaged Components * Techkits * RatioPacks * Hingepacks * Syringe Barrels * Cartridges * Nozzles




Prices are in GBP pounds.  Vat is charged on all UK orders. We provide VAT invoices with all transactions. Vat is not charged on any orders placed with us that ship outside the UK and EU. No VAT is charged for any orders placed for shipment to the EU only if a valid company VAT number is provided to us at time of order or prior to shipping.  Products are covered by a 12-month warranty against all faults and malfunction.  All orders placed online are encrypted for total safety and security.  Additional encryption now protects all of the web pages on this site. Please read our privacy agreement for details of how we conform to GDRP.  We can also process any phone or fax payments by credit and debit cards.  Please contact our accounts department if you would like to apply for a 30 day credit account with us.

Disclaimer: While reasonable efforts have been made to ensure all information on this website is accurate, Adhesive Dispensing Ltd. do not assume responsibility for any errors or omissions. All specifications, illustrations, data and prices are subject to change without notice.

Copyright 2021 Adhesive Dispensing Ltd. All rights reserved.



  Literature
  Full Catalogue
  Dispensing Catalogue
  Syringe Barrels
  Cartridges & Nozzles
  Dispense Tips
  Dispense Guns
  Dual Air Guns
  2K Cartridge & Mixers

  Information
  Tip Selector Guide
  Safety Information
  Viscosities Chart
  ISO9001:2015 Certificate
  ROHS & REACH



  Contact Us
  Equipment Recommendations
  Request a Quote
  Technical Support
  Barrel Certification

  Industrial Grade Safe


All products are safe for use for industrial applications. The components are leak-free and supplied in sealed packaging to prevent contamination.



  Silicone Free Products


Products including air powered barrels, cartridges, nozzles, luer tips, fluid lines, tubing, caps and seals - are certified silicone free to prevent contamination of sensitive adhesives dispensed from them.
