Static Mixer Nozzle Luer Lock Adapter Fitting
Our precision fittings offer safe and leak free connections from cartridges to barrels and feed tubing. This useful adapter fitting attaches to a static mixer nozzle to provide direct use of all dispensing tips and needles. Provides a higher level of precision dispensing.

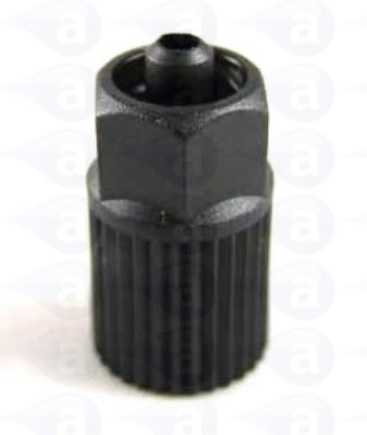

LA10-00 luer lock mix nozzle adapter fitting black

Adapter fitting for up to 10mm outer diameter static mixer nozzles. Allows standard needle tips to be used with cartridge mixer nozzles for higher levels of precision and control. Thread fit to male luer.

The fitting is twist threaded over the end of the mixer nozzle and a dispense tip is attached. Fittings are industrial grade safe and silicone free. All products shipped are in sealed boxes or sealed packs with labels and batch codes.

Specifications:
Material: Polyethylene
Colour: Black
Type: For Nozzles to 10mm OD
Flow Pattern: Straight
Maximum Pressure: 100 PSI (6.89 Bar)
Connection Type: Self Tapping Thread to Luer Lock
Features: Silicone-Free, Industrial Grade

AD series fitting components have a  Commodity Tariff Code of 90289090. Dispensing components have a Commodity Tariff Code of 39269097.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.


Mixer Nozzle Luer Lock Tip Adapters
More Info Part Code

Description

Price GBP Add
LA10-00
2K Brochure
Luer Tips
Catalogue
Material: Polyethylene
Colour: Black
Size: Up to 10mm OD Nozzles
Connection: Thread to Luer Lock
Pack Qty: 10, 50 or 100 Pieces
Lead Time: Ships Within 24 Hours
   pk/10
   pk/50
   pk/100

More Info Part Code

Description

Price GBP Add
LA06-08
2K Brochre
Luer Tips
Catalogue
Material: Polyethylene
Colour: Grey
Size: 6mm to 8mm OD Nozzles
Connection: Thread to Luer Lock
Pack Qty: 10, 50 or 100 Pieces
Lead Time: Ships Within 24 Hours
   pk/10
   pk/50
   pk/100

More Info Part Code

Description

Price GBP Add
LA05-00
2K Brochure
Luer Tips
Catalogue
Material: Polyethylene
Colour: White
Size: Up to 5mm OD Nozzles
Connection: Thread to Luer Lock
Pack Qty: 10, 50 or 100 Pieces
Lead Time: Ships Within 24 Hours
   pk/10
   pk/50
   pk/100

Accessories
Static Mixer Nozzle Adhesive Dispensing  Static Mixer Nozzles. This LA series tip adapter fitting is compatible with stepped end mix nozzles with a diameter of 5mm. Converts the end to use all types of luer lock tips.

Dispensing luer lock tips precision  Luer Lock Tips. Select a wide range of precision dispensing tips. Use general purpose for flowable materials. Use smooth flow tapered tips for high viscosity materials.

Ratio Dual Cartridge System  Dual Cartridges. Side by side dual cartridges for use with epoxy resins, silicones, polyurethanes, potting compounds and silicones. In a wide range of sizes and mix ratios.

2K Applicator Guns Adhesive Dispensing  Dual Guns. Manual, pneumatic and battery powered applicator guns for use with 2 component cartridges. Available in all mix ratios and cartridge sizes.
