Dual Cartridge Nozzle Evaluation Pack Ref.
SA7783 |
|
High density dual component dispense cartridges for two part
adhesives, epoxies, silicones and other fluids. All sets are
supplied with matching pistons and a tip cap ready for
filling and dispensing. Use with our range of manual and
pneumatic cartridges guns. Industrial grade and silicone
free. |
|
|
 |
|
|

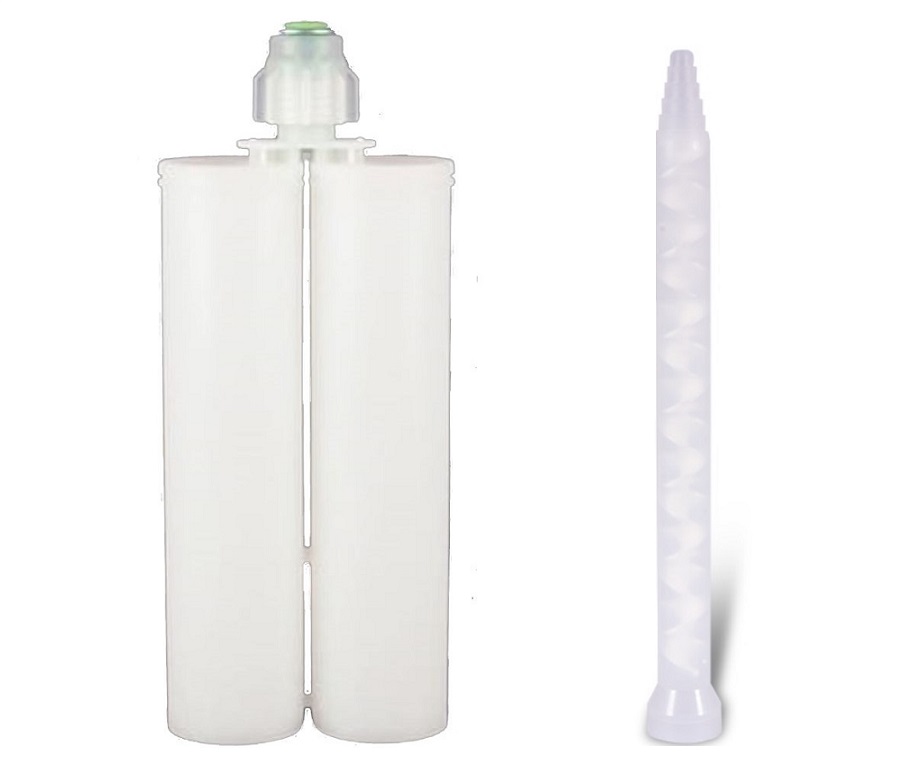

A multi-purpose
evaluation pack of 400ml (1:1) ratio dual cartridges, air vented
pistons, dust tip caps and static mixer nozzles.
This dual
system is a 400ml cartridge size (200ml + 200ml). And in a 1:1 mix
ratio by volume. Both components are stored in the two chambers of
the dual cartridge system and are then dispensed simultaneously
through the static mixer, where thorough dynamic mixing takes place.
This kit includes (2) of the cartridge sets, (2) of the 10mm
diameter x 18 element mixer nozzles, (2) of the 6mm diameter x 32
element mixer nozzles. All parts are silicone-free and industrial
grade. Easy to fill with resin and catalyst. Can be stored once
filled.
Use with manual, pneumatic or battery powered dual
dispensing guns.
Adhesive Dispensing Ltd
provide a wide range of equipment options for dispensing
almost all assembly fluids - from watery liquids, solvents,
primers and activators through to thick pastes, sealants,
silicones, gels and epoxies.
|
|
|
TYPE |
SPEC. |
PART CODE |
QTY |
|
Dual Cartridge Set |
400ml 1:1 Mix Ratio |
400011 |
2 |
|
Static Mixer Nozzle |
10mm ID x 18 Element |
MC10-18 |
2 |
|
Static Mixer Nozzle |
10mm ID x 18 Element |
MC06-32 |
2 |
|
|
|
|
Order online securely |
|
More Info |
Part
Code |
Description |
Lead Time |
Price GBP |
Add |
|
Small pack
of 400ml 1:1 ratio dual component cartridge sets
with 10mm x 18 element mixer nozzles and 6mm x 32
element mixer nozzles. A selection of assorted
parts 2 pieces of each. |
 |
SA7783
Dual Cartridge Mix Nozzle Kit
6
pcs |
400ml 1:1 Ratio Dual Component Cartridge Kit with
Static Nozzles |
Ships Within 24 Hours |
each |
 |
|
|
VAT:
Charges for VAT only applied where they are applicable.
VAT is not applied to orders that are shipped outside of
the UK and EU. This website is setup to for EU customers
to order products as Delivered Duty Paid (DDP). All
carriage, duty, VAT and fees are covered. For EU
customers who wish to handle your own import fees,
please order via
www.adhesivedispensing.co.uk
Delivery: Products shipped by
courier on a tracked and insured service for stock
items. Products on a longer lead time or built to order
will be sent as soon as available. Customers are
informed of ship dates. Once shipped, tracking codes are
emailed. Most shipments are by DHL courier.
Typical Applications:-
Deposits of two-component epoxy resins, polyurethanes,
silicones, potting compounds, doming resins, etc. |
|
|
Dual Component Cartridges and Static Mixer Nozzles |
 |
|
Industrial twin tube cartridges for use with epoxy
resins, polyurethanes, silicones and doming resins. In sizes 2.5ml,
3ml, 5ml, 10ml, 25ml, 50ml, 200ml, 400ml and 600ml. With wiper
pistons vented or lip-seal. In white polyethylene colour. Different
versions are available direct from stock. Wide range of
mix nozzles
are available. Read more... |
|
|
|
Static Mixer Nozzles |
 |
|
We stock a wide range of static mix nozzles for use
with two component cartridges and high pressure machine mixers. To
suit the different dual cartridge sizes
of K-System, A-System, B-System, C-System, F-System. And machines
types ME and MS series mixers. As well as the square Quadro mixers
and luer lock nozzles.
Read more... |
|
|
|
Gun Dispensers for Dual Component Cartridges |
 |
|
Gun dispensers for use with 50ml, 150ml 200ml, 300ml,
400ml, 600ml, 1200ml and 1500ml dual cartridge components. Manual,
pneumatic and battery rechargeable versions. For mix ratios 1:1,
2:1, 4:1 and 10:1. Rod driven applicators for controlled deposits
with material mess or waste. Easy to use products supplied with user
guides. Read more... |
|
|
|
AD Series Luer Lock Precision Dispensing Tips |
 |
|
Luer lock dispensing tips in gauge sizes from
12 to
34. Precision blunt end tube tips in lengths of 1/4", 1/2", 1", 1.5"
and 2".
Colour coded hubs to stainless steel tubes. Suitable for dispensing
most liquids and pastes. Conveniently packaged in sealed boxes of 50 or bulk value packs, all
direct from stock. Read more... |
|
|
|
Luer Lock Precision Dispensing Tips |
 |
|
Luer lock dispensing tips in gauge sizes from 8 to
34. Precision tube tips, smooth flow tapered, TLC crimped tips,
aluminium hub, angled tube, brush tips and flexible polypro tube.
Conveniently packaged in sealed boxes of 50 or bulk value packs, all
direct from stock. Read more... |
|
|
|
|
Standard Barrel and Piston Kits |
 |
|
Industrial grade barrels conveniently
packaged with wiper pistons in the same box. Natural (Clear), Amber
(Tint) or Black (Opaque) barrels made from high density
polypropylene. Standard PE pistons, flat walled, easy flow and
rubber type. Barrel sizes 3cc, 5cc, 10cc, 30cc, 55cc.
Read more... |
|
|
|
Big Barrel and Piston Kits |
 |
|
For larger volume dispenser, we stock big barrels in
sizes 100cc, 200cc, 300cc, 400cc and 500cc. The barrel is made from
high density clear polypropylene with PE wiper pistons. Kit includes
an air cap, gasket and 5ft. airline hose with connector to dispenser.
Read more... |
|
|
|
Timed Shot Bench Dispensers |
 |
|
We stock a wide range of pneumatic timed shot dispensers for use
with syringe barrels and cartridges. Set the air pressure, set the
timer and use the system to make repeat shots of epoxy or switch off
the timer for making controller beads or potting. Use the vacuum
suck-back to avoid drips.
Read more... |
|
|
|
|
|
|
|
|
|
|
|
Air-Powered Dispensers * Industrial Dispensing Components *
Precision Dispense Valve Systems * Bench Robots |
|
Adhesives * Packaged Components * Techkits * RatioPacks *
Hingepacks * Syringe Barrels * Cartridges * Nozzles |
|
