Dual Cartridge Kit 400ml Size 2:1 Mix Ratio |
|
High
performance dual 2K component dispensing cartridges for mixing,
blending
and then delivering two part
adhesives, epoxies, silicones, polyurethanes, resins and other materials.
Supplied with wiper pistons, dust cap and nozzle collar ready for material filling
then
accurate dispensing. Used with our range of manual, battery and pneumatic
applicator guns. Components are always certified industrial grade and
silicone free. The C-system uses a bell mouth housing nozzle
attachment to the cartridge. |
|
 |
|
Polypropylene body cartridges used for two component material mixing and
dispensing without the need to manually weigh, mix and pour. These products are
compatible with all industry standard manual, pneumatic and battery
applicator guns. Each cartridge set includes the cartridge, dual air-vented pistons,
nozzle collar and
a tip cap seal.
Supplied in kits ready for filling with most two
part epoxies, silicone, polyurethanes, compounds or other materials. The
main resin (part A) is fed separately to the catalyst (part B) and both
materials leave the cartridge to meet then dynamically blend within the
static mixer nozzle. Any cartridges that are not empty can be simply capped
off ready for use with a new mixer nozzle. You never waste material in the
cartridges.
The C-system cartridges are available in mix ratios of
1:1, 2:1, 4:1 and 10:1 by volume and in sizes 200ml, 400ml and 600ml. Products are industrial grade safe to 100
psi pressure and are certified silicone-free. This version is 400ml volume
and 2:1 mix ratio.
Applicator guns are available for all size cartridges either
in manual, pneumatic. Please see
product options on this page. All products are supplied in
sealed packs with labels and batch codes.
Adhesive Dispensing Ltd provide a wide range of equipment
options for dispensing almost all assembly fluids - from
watery liquids, solvents, primers and activators through to
thick pastes, sealants, silicones, gels and epoxies.
|
|

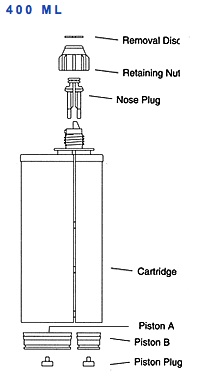

| Specifications |
Material: Polypropylene Barrel
Body
Colour: White
Size: 400m
Nozzle Attachment: Bayonet
Mix Ratio: 2:1 By Volume
Maximum Pressure:
100 PSI
Flow Pattern: Straight
Description: Dual Cartridge
Features: Silicone-Free/ Industrial Grade
Pack Sizes: 50
Commodity Code: 39269097
Brand: Sulzer Mixpac |
| |
Delivery: Products
shipped by courier on a tracked and
insured service for stock items. Products on a
longer
lead time or built to order will be sent as soon as available. Customers are informed of
ship dates.
Typical Applications:-
Controlled deposits of
epoxy resins, two-part silicones, PU Polyurethanes, silicones and many other
two-component
and mixed materials. |
|
|
|
|
|
|
|
|
|
C-System Bell Mouth Mixer Nozzles |
 |
| The C-system
nozzles use a locking collar
attachment on the cartridge to secure the bell
mouth housing. Available in a wide
range of diameters and lengths. Helical round
version or quadro square body with green
elements. Nozzles outer is
made of natural high density polypropylene.
T have stepped end. D have open end. L have
luer end. Click
the links below for more product details and
pack size options. Commodity tariff code
39269097. |
|
|
Dia. |
Length |
Element |
Ratio |
Colour |
Code |
Lead Time |
Price GBP |
Add |
|
5.0mm |
121mm |
18 |
1:1/2:1 |
White |
MCH05-18T |
24
Hours |
pk/100 |
 |
|
5.0mm |
149mm |
24 |
1:1/2:1 |
White |
MCH05-24T |
24
Hours |
pk/100 |
|
|
5.0mm |
188mm |
32 |
1:1/2:1 |
White |
MCH05-32T |
1-2 Weeks |
pk/100 |
|
|
6.0mm |
149mm |
18 |
1:1/2:1 |
White |
MCH06-18T |
1-2 Weeks |
pk/100 |
|
|
6.0mm |
187mm |
24 |
1:1/2:1 |
White |
MCH06-24T |
24 Hours |
pk/100 |
|
|
6.0mm |
187mm |
24 |
1:1/2:1 |
White |
MCH06-24L |
24 Hours |
pk/100 |
|
|
6.0mm |
234mm |
32 |
1:1/2:1 |
White |
MCH06-32T |
1-2 Weeks |
pk/100 |
|
|
8.0mm |
177mm |
18 |
1:1/2:1 |
White |
MCH08-18T |
24
Hours |
pk/100 |
|
|
8.0mm |
223mm |
24 |
1:1/2:1 |
White |
MCH08-24T |
24 Hours |
pk/100 |
|
|
8.0mm |
287mm |
32 |
1:1/2:1 |
White |
MCH08-32T |
24 Hours |
pk/100 |
|
|
8/10mm |
212mm |
18 |
1:1/2:1 |
White |
MCH1008-18S |
24
Hours |
pk/100 |
|
|
10.0mm |
156mm |
12 |
1:1/2:1 |
White |
MCH10-12T |
24 Hours |
pk/100 |
|
|
10.0mm |
214mm |
18 |
1:1/2:1 |
White |
MCH10-18T |
24
Hours |
pk/100 |
|
|
10.0mm |
215mm |
20 |
1:1/2:1 |
White |
MCH10-20D |
1-2 Weeks |
pk/100 |
|
|
10.0mm |
257mm |
24 |
1:1/2:1 |
White |
MCH10-24D |
1-2 Weeks |
pk/100 |
|
|
10.0mm |
276mm |
24 |
1:1/2:1 |
White |
MCH10-24T |
24 Hours |
pk/100 |
|
|
10.0mm |
352mm |
32 |
1:1/2:1 |
White |
MCH10-32T |
1-2 Weeks |
pk/100 |
|
|
13.0mm |
170mm |
12 |
1:1/2:1 |
White |
MCH13-12T |
24 Hours |
pk/100 |
|
|
13.0mm |
231mm |
18 |
1:1/2:1 |
White |
MCH13-18T |
24 Hours |
pk/100 |
|
|
13.0mm |
293mm |
24 |
1:1/2:1 |
White |
MCH13-24T |
1-2 Weeks |
pk/100 |
|
|
13.0mm |
379mm |
32 |
1:1/2:1 |
White |
MCH13-32T |
1-2 Weeks |
pk/100 |
|
|
|
|
5.3mm |
127mm |
24 |
1:1/2:1 |
Green |
MCQ05-24L |
24 Hours |
pk/100 |
|
|
7.5mm |
130mm |
24 |
1:1/2:1 |
Green |
MCQ07-24T |
24 Hours |
pk/100 |
|
|
8.7mm |
147mm |
24 |
1:1/2:1 |
Green |
MCQ08-24T |
24 Hours |
pk/100 |
|
|
8.7mm |
186mm |
32 |
1:1/2:1 |
Green |
MCQ08-32T |
24 Hours |
pk/100 |
|
|
10.7mm |
172mm |
24 |
1:1/2:1 |
Green |
MCQ10-24T |
24 Hours |
pk/100 |
|
|
10.7mm |
220mm |
32 |
1:1/2:1 |
Green |
MCQ10-32T |
24 Hours |
pk/100 |
|
|
|
|
8.7mm |
129mm |
18 |
1:1/2:1 |
Green |
MGQ08-18T |
24 Hours |
pk/100 |
|
|
8.7mm |
142mm |
20 |
1:1/2:1 |
Green |
MGQ08-20D |
24 Hours |
pk/100 |
|
|
8.7mm |
142mm |
20 |
1:1/2:1 |
Green |
MGQ08-20T |
24 Hours |
pk/100 |
|
|
8.7mm |
161mm |
24 |
1:1/2:1 |
Green |
MGQ08-24D |
24 Hours |
pk/100 |
|
|
8.7mm |
161mm |
24 |
1:1/2:1 |
Green |
MGQ08-24T |
24 Hours |
pk/100 |
|
|
10.7mm |
158mm |
16 |
1:1/2:1 |
Green |
MGQ10-16D |
24 Hours |
pk/100 |
|
|
10.7mm |
158mm |
19 |
1:1/2:1 |
Green |
MGQ10-19D |
24 Hours |
pk/100 |
|
|
10.7mm |
187mm |
24 |
1:1/2:1 |
Green |
MGQ10-24D |
24 Hours |
pk/100 |
|
|
|
Manual Dual Cartridge Dispenser Guns |
 |
| We stock a wide range
of manual dispenser guns for use with the
C-system dual cartridges.
Select by mix ratio and cartridge size. Click
the links below for more product details and options.
Commodity tariff code 90289090. |
|
|
Size |
Mix Ratio |
Gun Type |
Part Code |
Lead Time |
Price GBP |
Add |
|
400ml |
1:1/2:1/4:1/10:1 |
Manual |
VBM400MR |
24 Hours |
each |
|
|
400ml |
1:1/2:1/4:1/10:1 |
Manual |
BG400-1 |
24 Hours |
each |
|
|
400ml |
1:1/2:1 |
Manual |
DM2X400-01 |
3-4 Weeks |
each |
|
|
|
Pneumatic Dual Cartridge Dispenser Guns |
 |
| We stock powerful
pneumatic dispenser guns for use with the
C-system dual cartridges.
Select by mix ratio. Click
the links below for more product details and options.
Commodity tariff code 90289090. |
|
|
Size |
Mix Ratio |
Gun Type |
Part Code |
Lead Time |
Price GBP |
Add |
|
400ml |
1:1/2:1/4:1/10:1 |
Pneumatic |
CG400-2 |
24
Hours |
each |
|
|
400ml |
1:1/2:1/4:1/10:1 |
Pneumatic |
CG400-2H |
1-2 Weeks |
each |
|
|
400ml |
1:1/2:1 |
Pneumatic |
CG400-1 |
24 Hours |
each |
|
|
400ml |
1:1/2:1 |
Pneumatic |
DP400-85-01 |
3-4 Weeks |
each |
|
|
400ml |
1:1/2:1 |
Pneumatic |
DP400-100-01 |
3-4 Weeks |
each |
|
|
400ml |
1:1/2:1 |
Pneumatic |
DP2X-400-01 |
3-4 Weeks |
each |
|
|
|
Battery Rechargeable Dual Cartridge Dispenser Guns |
 |
| We stock cordless
rechargeable battery dispenser guns for use with
the C-system dual cartridges.
Select by mix ratio. Click
the links below for more product details and options.
Commodity tariff code 90289090. |
|
|
Size |
Mix Ratio |
Gun Type |
Part Code |
Lead Time |
Price GBP |
Add |
|
400ml |
1:1/2:1/4:1/10:1 |
Battery |
VBE400MR |
3-4 Weeks |
each |
|
|
400ml |
2:1 |
Battery |
DB2-400-02 |
3-4 Weeks |
each |
|
|
Industrial Grade Safe to high pressures
Silicone-Free - no contamination
Supplied
in sealed packs - batch codes
Handles
epoxies, silicones, PUs, etc
Quick
attach static mixer nozzles
Competitive pricing for these items |
|
|
Delivery: Products shipped by courier on a tracked and
insured service for stock items. Products on a longer lead time or built to
order will be sent as soon as available. Customers are informed of ship
dates.
Typical
Applications:- Deposits of epoxy resins, silicones, potting
compounds, polyurethanes and other 2-part materials. |
|
|
|
Gun Dispensers for Dual Component Cartridges |
 |
|
Gun dispensers for use with 50ml, 150ml 200ml, 300ml,
400ml, 600ml, 1200ml and 1500ml dual cartridge components. Manual,
pneumatic and battery rechargeable versions. For mix ratios 1:1,
2:1, 4:1 and 10:1. Rod driven applicators for controlled deposits
with material mess or waste. Easy to use products supplied with user
guides. Read more... |
|
|
Dual Component Cartridges and Static Mixer Nozzles |
 |
|
Industrial twin tube cartridges for use with epoxy
resins, polyurethanes, silicones and doming resins. In sizes 2.5ml,
3ml, 5ml, 10ml, 25ml, 50ml, 200ml, 400ml and 600ml. With wiper
pistons vented or lip-seal. In white polyethylene colour. Different
versions are available direct from stock. Wide range of
mix nozzles
are available. Read more... |
|
|
Static Mixer Nozzles |
 |
|
We stock a wide range of static mix nozzles for use
with two component cartridges and high pressure machine mixers. To
suit the different dual cartridge sizes
of K-System, A-System, B-System, C-System, F-System. And machines
types ME and MS series mixers. As well as the square Quadro mixers
and luer lock nozzles.
Read more... |
|
|
Air Powered Syringe Barrel Dispensers |
 |
|
We stock a wide range of pneumatic dispensers for use
with 3cc, 5cc, 10cc, 30cc, 55cc size syringe barrels and new 100cc,
200cc, 300cc, 400cc and 500cc big barrels. Dispensers can provide
timed shots of liquids and paste eliminating hand fatigue,
inconsistency and mess. Select from analog timed dispensers to full
digital with memory and auto repeat.
Read more... |
|
|
|
|
|
Air-Powered Dispensers * Industrial Dispensing Components *
Precision Dispense Valve Systems * Bench Robots |
|
Adhesives * Packaged Components * Techkits * RatioPacks *
Hingepacks * Syringe Barrels * Cartridges * Nozzles |
|
Prices are
in GBP pounds. Vat is charged on all UK orders. We provide VAT
invoices with all transactions. Vat is not charged on any orders placed
with us that ship outside the UK and EU. No VAT is charged for any
orders placed for shipment to the EU only if a valid company VAT number
is provided to us at time of order or prior to shipping. Products
are covered by a 12-month warranty against all faults and malfunction.
All orders placed online are encrypted for total
safety and security. Additional encryption now protects all of the
web pages on this site. Please read our
privacy
agreement for details of how we conform to GDRP. We can also
process any phone or fax payments by credit and debit cards.
Please contact our accounts department if you would like to apply for a
30 day credit account with us.
Disclaimer: While reasonable efforts have been made
to ensure all information on this website is
accurate, Adhesive Dispensing Ltd. do not assume
responsibility for any errors or omissions. All
specifications, illustrations, data and prices are
subject to change without notice.
Copyright 2021 Adhesive
Dispensing Ltd. All rights reserved.
|
|
|
|
|
|
|
