> Home > Equipment > Guns > Dual Guns > VBE 400 MR




400ml Cordless Battery 2K Cartridge Gun for Epoxy Dispensing

Our cartridge gun dispensers are designed for the controlled application of two component epoxies, silicones and other materials. Use this high quality rechargeable applicator gun with all 1:1, 2:1, 4:1 or 10:1 ratio 400ml dual cartridges.

VBE 400 MR Battery 400ml 2K gun Adhesive Dispensing   Rapid charging battery powered applicator 2K gun for 400ml size 1:1,2:1, 4:1 and 10:1 ratio side by side dual cartridges. Cordless guns provide high levels of torque for handling viscous materials with a very controlled flow and without the need for compressed air. Guns provide a more level flow of adhesive without air surge with pneumatic systems.

At the end of a cycle, the rod moves back slightly to eliminate drips and oozing. This version is supplied with straps and discs to adapt between the different dual cartridge ratios. A dual rod design system for robust control over coaxial dual cartridges. A quick charging battery and drive mechanism.

No need for airline hoses used with pneumatic guns. No hand fatigue found with manual cartridge guns. Battery guns offer the benefits of both without negatives. Supplied with a battery, charger in a professional toolbox. This product is CE approved. Covered by a 2 year warranty.

Specifications
Capacity: 400ml (14 Ounce)
Cartridge Ratio: 1:1, 2:1, 4:1, 10:1
Battery: 18V/ 2 Ah (Li-Ion) (Optional 4 Ah battery available)
Power: 5 kN (1000kg)
Speed: Up to 4.5mm/second
Charging Time: 45 minutes 2 Ah, 45 minutes 4 Ah
Weight: 3.8kg (with battery)
Frame Length: 203mm
Handle Material: PC/ ABS
Frame Material: Steel/ Aluminium
Viscosity: Suits Medium and High Viscosity Materials
Colour: Black/ Grey
Warranty: 2 Years
Approvals: CE, REACH, RoHS

More Info Part No. Size Type Ratio Details Price GBP Add
VBE400MR Battery Gun 400ml Sulzer Mixpac Cox VBE 400 MR
Multi Ratio Dual Gun
400ml Battery Gun 1:1/2:1/ 4:1/10:1 Gun Only    each
200ml 1:1 Ratio Dual Cartridge System 400011
Dual Cartridges
400ml Cartridge Piston Sets 1:1 Only With Pistons    pack 50
200ml 1:1 Ratio Dual Cartridge System 400021
Dual Cartridges
400ml Cartridge Piston Sets 2:1 Only With Pistons    pack 50
200ml 1:1 Ratio Dual Cartridge System 400041
Dual Cartridges
400ml Cartridge Piston Sets 4:1 Only With Pistons    pack 50
200ml 1:1 Ratio Dual Cartridge System 400101
Dual Cartridges
400ml Cartridge Piston Sets 10:1 Only With Pistons    pack 50
Static Mixer Nozzle Adhesive Dispensing MC05-18
Static Mixer Nozzle
5.0mm 121mm Long x 18 Elements 1:1/2:1 Bell Mouth Top
White Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MC05-24
Static Mixer Nozzle
5.0mm 149mm Long x 24 Elements 1:1/2:1 Bell Mouth Top
White Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MC06-24
Static Mixer Nozzle
6.0mm 185mm Long x 24 Elements 1:1/2:1 Bell Mouth Top
White Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MC06-32
Static Mixer Nozzle
6.0mm 234mm Long x 32 Elements 1:1/2:1 Bell Mouth Top
White Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MC08-18
Static Mixer Nozzle
8.0mm 177mm Long x 18 Elements 1:1/2:1 Bell Mouth Top
White Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MC08-24
Static Mixer Nozzle
8.0mm 223mm Long x 24 Elements 1:1/2:1 Bell Mouth Top
White Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MC10-18
Static Mixer Nozzle
10.0mm 214mm Long x 18 Elements 1:1/2:1 Bell Mouth Top
White Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MCHX08-18
Static Mixer Nozzle
8.0mm 182mm Long x 18 Elements 4:1/10:1 Bell Mouth Top
Orange Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MCHX08-24
Static Mixer Nozzle
8.0mm 230mm Long x 24 Elements 4:1/10:1 Bell Mouth Top
Orange Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MCHX10-12
Static Mixer Nozzle
10.0mm 155mm Long x 12 Elements 4:1/10:1 Bell Mouth Top
Orange Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MCHX10-18
Static Mixer Nozzle
10.0mm 215mm Long x 18 Elements 4:1/10:1 Bell Mouth Top
Orange Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MCHX10-24
Static Mixer Nozzle
10.0mm 275mm Long x 24 Elements 4:1/10:1 Bell Mouth Top
Orange Element
   pack 100
Static Mixer Nozzle Adhesive Dispensing MCHX13-12
Static Mixer Nozzle
13.0mm 192mm Long x 12 Elements 4:1/10:1 Bell Mouth Top
Orange Element
   pack 100

Product Pages


VBE 400 MR Gun Features

Reduces hand fatigue - battery powered
No airline hose required
Reverse rod function eliminates oozing
Dual voltage power charger
One handed adjustment to flow control
Robust build and design with 2 year cover
Supplied ready to use

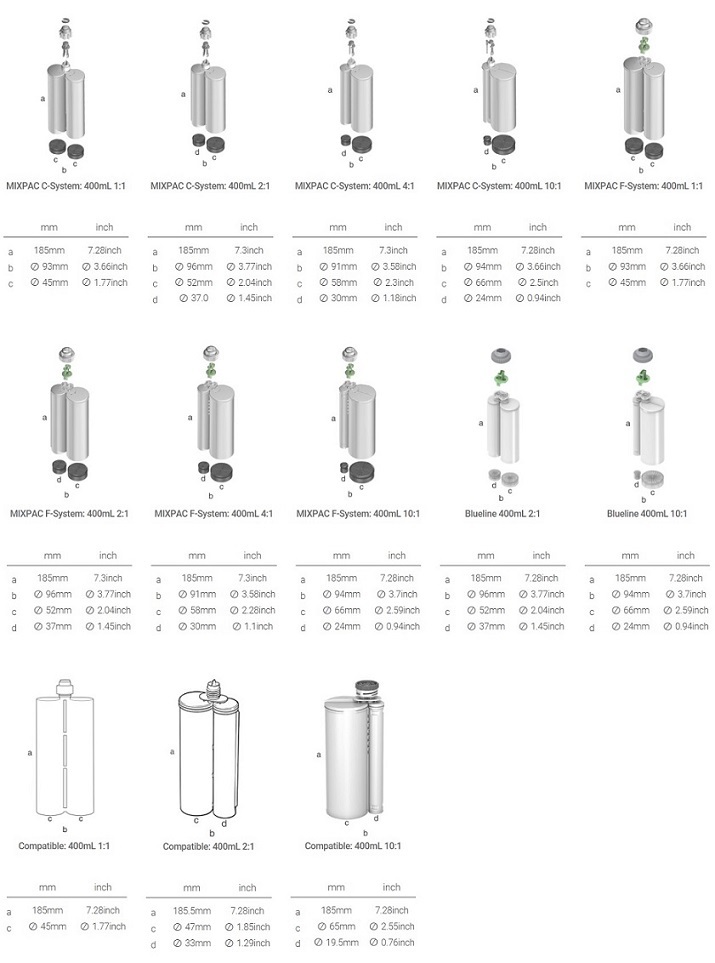

Compatible with the 400ml cartridges below
