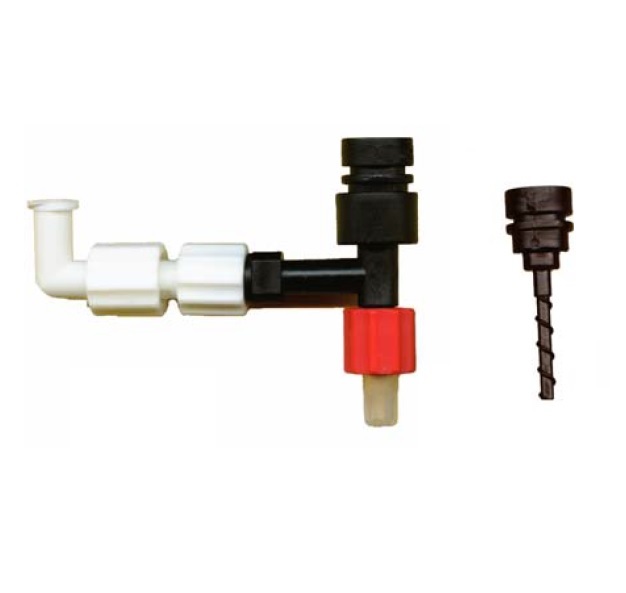

Replacement feed paths for use with TS5000DMP auger valve. Simple
rapid changeover for maintenance free dispensing. 6 pitch size. High
density Delrin. Fits into valve and allows for direct attachment of
syringe barrel to feed material and dispense tip on the output.
Supplied preassembled in sealed packs of 10 parts.
The
unique DMP (Disposable Material Path) Valve (TS5000DMP) offers a
choice of 3 different feed screw sizes (6, 8 and 16-pitch), all made
of Delrin. The DMP Valve has a hinged doorway that opens easily so
the disposable auger can be removed and replaced within seconds,
while the line is still in operation, significantly reducing
downtime and waste.
The choice of left, right or center
hinge openings makes the valve suitable for mounting on most
automated systemsfeed paths for use with
TS5000DMP auger valve. All products shipped are in sealed boxes or packs that
include label with batch codes.
Adhesive Dispensing Ltd
provide a wide range of equipment options for dispensing
almost all assembly fluids - from watery liquids, solvents,
primers and activators through to thick pastes, sealants,
silicones, gels and epoxies. |
Specifications:
DMP6-10 Specifications
Screw Pitch: 6
Wetted Parts:
Delrin
Inlet: Female Luer
Outlet: Male Luer
Colours: Black/ White/ Red
Fluid Viscosity Range: 30 to
1.3 Million CPS
Maximum Fluid Pressure: 30 PSI
Door
Opening: Left or Right Side
Fluid Flow Path: 90 Degree
Pack Size: 10
Commodity Code: 39269097
Brand: TSI
Delivery: Products shipped by courier on a
tracked and insured service for stock items. Products on a
longer lead time or built to order will be sent as soon as
available. Customers are informed of ship dates should there
be a slight delay.
Typical Applications:-
Deposits of solder pastes, die attach, SMT adhesives,
thermal compounds, pre-mixed and frozen epoxies, chip
encapsulation and dam writing. |
|
|
Suitable for ... |
 |
Solder Pastes |
 |
Braze Pastes |
 |
Pre-Mixed Frozen Epoxies |
 |
Die Attach |
 |
Heavy Grease |
 |
SMT Adhesives |
 |
Thermal Compounds |
|
|
|
|
More Info |
Part Code |
Description |
Price GBP |
Add |
|
 |
|
DMP6-10 |
Tip Sheet |
|
Barrel Sheet |
|
Full Catalogue |
|
| Material:
Delrin |
| Colour: Black/
Red |
| Inlet: Female
Luer |
| Outlet: Male
Luer |
|
Pitch Size: 6 |
| Lead Time: Ships 24 Hours |
|
 pk/10 |
 |
|
|
|
Delivery:
Products shipped by courier on a tracked and
insured service for stock items. Products that are on a
longer
lead time or built to order will be sent as soon as available. Customers are informed of
all ship dates and lead times if out of stock. |
|
|
|
Motor Driven Rotary Auger
Valve |
|
More Info |
Part Code |
Description |
Price GBP |
Add |
|
 |
|
TS5000DMP-DCX |
|
Tip Sheet |
|
Barrel Sheet |
|
Full Catalogue |
|
| Wetted Parts:
Delrin |
| Size: 149mm L
x 90mm OD |
| Weight: 350
Gram |
| Input Voltage:
5-24 V DC |
|
Cycle Rate Shots: Up to 300/min |
| Lead Time: Ships
1-2 Weeks |
|
each |
|
|
|
|
Rotary Auger
Valve Smart Controller |
|
More Info |
Part Code |
Description |
Price GBP |
Add |
|
 |
|
TS570R |
|
Tip Sheet |
|
Barrel Sheet |
|
Full Catalogue |
|
| Wetted Parts:
Delrin |
| Size: 290mm x
211mm x 99mm |
| Weight: 3.1kg |
| Input
Voltage: 100-240V AC |
|
Timer: 0.008 to 99.99 secs |
| Lead Time: Ships
1-2 Weeks |
|
each |
|
|
|
|
Other Feedpath Options |
|
More Info |
Part Code |
Description |
Price GBP |
Add |
|
|
|
|
DMP8-10 |
|
Tip Sheet |
|
Barrel Sheet |
|
Full Catalogue |
|
| Material:
Delrin |
| Colour: Black |
| Inlet: Female
Luer |
| Outlet: Male
Luer |
|
Pitch Size: 8 |
| Lead Time: Ships 24 Hours |
|
pk/10 |
|
|
|
|
More Info |
Part Code |
Description |
Price GBP |
Add |
|
|
|
|
DMP16-10 |
|
Tip Sheet |
|
Barrel Sheet |
|
Full Catalogue |
|
| Material:
Delrin |
| Colour: Black/
Blue |
| Inlet: Female
Luer |
| Outlet: Male
Luer |
|
Pitch Size: 16 |
| Lead Time: Ships 24 Hours |
|
pk/10 |
|
|
|
|
Standard Barrel and Piston Kits |
 |
|
Industrial grade barrels conveniently
packaged with wiper pistons in the same box. Natural (Clear), Amber
(Tint) or Black (Opaque) barrels made from high density
polypropylene. Standard PE pistons, flat walled, easy flow and
rubber type. Barrel sizes 3cc, 5cc, 10cc, 30cc, 55cc.
Read more... |
|
|
|
Big Barrel and Piston Kits |
 |
|
For larger volume dispenser, we stock big barrels in
sizes 100cc, 200cc, 300cc, 400cc and 500cc. The barrel is made from
high density clear polypropylene with PE wiper pistons. Kit includes
an air cap, gasket and 5ft. airline hose with connector to dispenser.
Read more... |
|
|
 |
|
|
|
|
|
|
