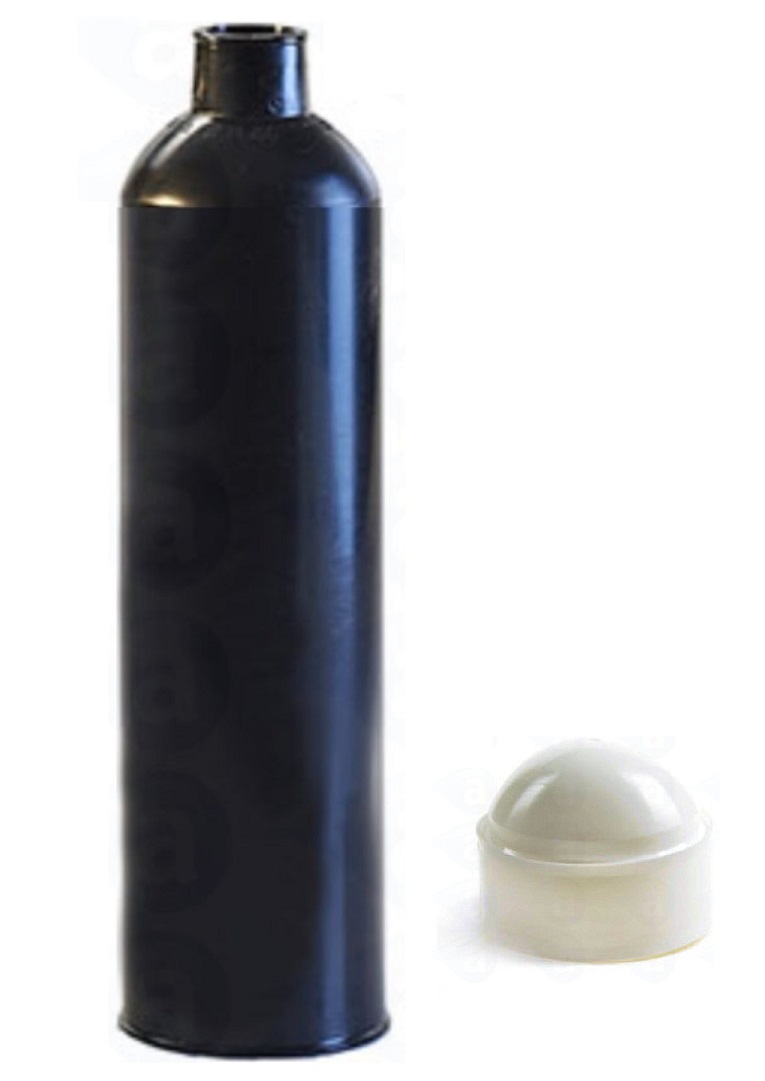

reservoir in high density polyethylene with wiper plunger in a kit.
Contains (10) TS20C-BLACK High Density Polyethylene
(HDPE) Cartridges and (10) TS20P Medium Density Polyethylene (MDPE) Wiper
Plungers in each kit. 20 ounce/ 591cc/ml size.
Designed for handling most materials including solvent based fluids.
Suitable for use in
cartridge guns or pressurised cartridge retainers and caps.
Cartridges feature a 1/4 Inch NPT (6mm) female thread dispensing orifice
for secure attachment of nozzles or 1/4 Inch threaded fittings.
** Cartridges and plungers are supplied separate ready for plungers
to be inserted during use- not pre-inserted. For pre-inserted
plungers in cartridges, please contact us.
All products shipped are in sealed boxes and
include label with batch codes.
Black Polyethylene High Density HDPE
Plunger Material: White
Polyethylene Medium Density MDPE
Colours: Black Cartridge/ White Plunger
249.40mm - 9.82 Inch
67.80mm - 2.67 Inch
Cartridge ID: 65.30mm - 2.57
Cartridge Volume: 20 Ounce (591cc/ 591ml) Maximum
Connection: 1/4 Inch NPT Thread
Maximum Pressure: 100 PSI
Flow Pattern: Straight
Description: Cartridge and Plunger Kit
Features: Silicone-Free, Industrial Grade
Pack Size: 10 Cartridges/ 10
Commodity Tariff Code: 39269097
shipped by courier on a tracked and
insured service for stock items. Products on a
lead time or built to order will be sent as soon as available. Customers are informed of
Typical Applications:- Deposits
of glues, sealants, adhesives, silicones, solder pastes, fluxes, braze
pastes, RTVs, UV cure (use black version), solvents and many other
Adhesive Dispensing Ltd provide a wide range
of equipment options for dispensing almost all assembly fluids -
from watery liquids, solvents, primers and activators through to
thick pastes, sealants, silicones, gels and epoxies.
