20oz HDPE Cartridge Reservoir & LDPE Plunger Kit
Cartridges are manufactured to the very highest possible quality delivering exceptional performance and consistency. From moulding to packaging, cartridges are guaranteed to be free of silicone contaminants and imperfections.

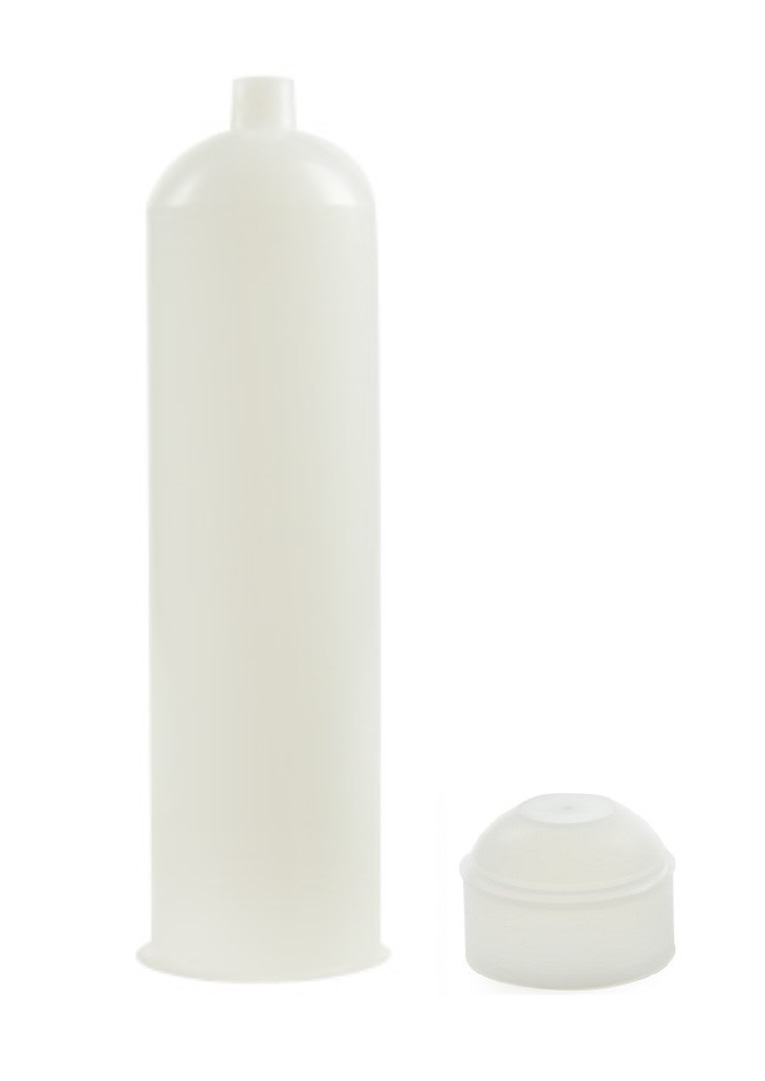

TS20CKITLD Cartridge Plunger Kit 20oz Adhesive Dispensing

Cartridge reservoir in high density polyethylene with wiper plunger in a kit. Contains (10) TS20C High Density Polyethylene (HDPE) Cartridges and (10) TS20PLD Low Density Polyethylene (LDPE) Wiper Plungers in each kit. 20 ounce/ 591cc ml size. Designed for handling most materials including solvent based fluids.

Suitable for use in cartridge guns or pressurised cartridge retainers and caps. Cartridges feature a 1/4 Inch NPT (6mm) female thread dispensing orifice for secure attachment of nozzles or 1/4 Inch threaded fittings.

** Cartridges and plungers are supplied separate ready for plungers to be inserted during use- not pre-inserted. For pre-inserted plungers in cartridges, please contact us or view other options.

All products shipped are in sealed boxes and include label with batch codes.

Specifications:
Cartridge Material: Natural Polyethylene High Density HDPE
Plunger Material: White Polyethylene Low Density LDPE
Colours: Natural Cartridge/ Natural Plunger
Cartridge Length: 249.40mm - 9.82 Inch
Cartridge OD: 67.80mm - 2.67 Inch
Cartridge ID: 65.30mm - 2.57 Inch
Cartridge Volume: 20 Ounce (591cc/ 591ml) Maximum
Nozzle Connection: 1/4 Inch NPT Thread
Maximum Pressure: 100 PSI (6.89 Bar)
Flow Pattern: Straight
Description: Cartridge and Plunger Kit
Features: Silicone-Free, Industrial Grade
Pack Size: 10 Cartridges/ 10 Plungers
Commodity Tariff Code: 39269097

Delivery: Products shipped by courier on a tracked and insured service for stock items. Products on a longer lead time or built to order will be sent as soon as available. Customers are informed of ship dates.

Typical Applications:- Deposits of glues, sealants, adhesives, silicones, solder pastes, fluxes, braze pastes, RTVs, UV cure (use black version), solvents and many other assembly fluids.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.


    Silicone and chloride free materials
  Industrial grade safe to 100 psi
  Resistant to aggressive fluids & solvents
  High density mouldings
  1/4 Inch NPT nozzle thread attachment
  Compatible with industry standard guns
  Supplied in sealed packs
  Labels with batch codes
  Use with manual or pneumatic dispensers


Cartridges


More Info Part Code

Description / Quantity

Price GBP Add
TS20CLDKIT
Cartridges Info
Guns Brochure
Catalogue
Cartridge Size: 20oz (591cc/591ml)
Type: HDPE Natural Cartridge
Plunger: LDPE Natural Wiper
Material: Polyethylene
Pack Qty: 10 Pieces of each part
Lead Time: Ships Within 24 Hours
  pack

More Info Part Code

Description / Quantity

Price GBP Add
TS20CKIT
Cartridges Info
Guns Brochure
Catalogue
Cartridge Size: 20oz (591cc/591ml)
Type: HDPE Natural Cartridge
Plunger: MDPE White Wiper
Material: Polyethylene
Pack Qty: 10 Pieces of each part
Lead Time: Ships Within 24 Hours
  pack

More Info Part Code

Description / Quantity

Price GBP Add
TS20CKIT-BL
Cartridges Info
Guns Brochure
Catalogue
Cartridge Size: 20oz (591cc/591ml)
Type: HDPE Black Cartridge
Plunger: MDPE White Wiper
Material: Polyethylene
Pack Qty: 10 Pieces of each part
Lead Time: Ships Within 24 Hours
  pack

More Info Part Code

Description / Quantity

Price GBP Add
TS20CKIT-BL-LD
Cartridges Info
Guns Brochure
Catalogue
Cartridge Size: 20oz (591cc/591ml)
Type: HDPE Black Cartridge
Plunger: LDPE White Wiper
Material: Polyethylene
Pack Qty: 10 Pieces of each part
Lead Time: Ships Within 24 Hours
  pack

20oz Pneumatic Applicator
Air-powered cartridge gun with metal threaded cartridge retainer. Large volume applicators designed to suit different viscosity materials. With ergonomic handle and trigger assembly. Quiet operation and lightweight over long periods of use. This is a new product being completed and can be pre-ordered now. Lead time is around 3-4 weeks for the first stocks. Read more...
More Info Part Code

Description / Quantity

Price GBP Add
AD110-20
Cartridges Info
Guns Brochure
Catalogue
Cartridge Size: 20oz (591cc/591ml)
Type: Pneumatic Hand Operated Gun
Colour: Black
Materials: Steel, Aluminium, Nylon
Gun Weight: 1750g
Lead Time: Pre-Order
  each

TS Series Cartridge Nozzles
Industrial dispensing nozzles with 1/4 Inch thread for leak free attachment to cartridges and dispensing valves. Supplied in sealed packs with labels and batch codes. Cartridge nozzles are safe to 100 PSI and are certified silicone free plastics. Read more...
More Info Part Code

Description / Quantity

Price GBP Add
Adhesive Dispensing Nozzle Cartridge Techcon Semco
TS216
Cartridges Info
Guns Brochure
Catalogue
For Cartridge Sizes: All
Type: MDPE Natural Standard Nozzle
Size: 2.5" Long x 1/16" ID
Materials: Polyethylene
Pack Qty: 10 Pieces
Lead Time: Ships Within 24 Hours
  pack

More Info Part Code

Description / Quantity

Price GBP Add
Adhesive Dispensing Nozzle Cartridge Techcon Semco
TS218
Cartridges Info
Guns Brochure
Catalogue
For Cartridge Sizes: All
Type: MDPE Natural Standard Nozzle
Size: 2.5" Long x 1/8" ID
Materials: Polyethylene
Pack Qty: 10 Pieces
Lead Time: Ships Within 24 Hours
  pack

More Info Part Code

Description / Quantity

Price GBP Add
Adhesive Dispensing Nozzle Cartridge Techcon Semco
TS416
Cartridges Info
Guns Brochure
Catalogue
For Cartridge Sizes: All
Type: MDPE Natural Standard Nozzle
Size: 4.0" Long x 1/16" ID
Materials: Polyethylene
Pack Qty: 10 Pieces
Lead Time: Ships Within 24 Hours
  pack

More Info Part Code

Description / Quantity

Price GBP Add
Adhesive Dispensing Nozzle Cartridge Techcon Semco
TS418
Cartridges Info
Guns Brochure
Catalogue
For Cartridge Sizes: All
Type: MDPE Natural Standard Nozzle
Size: 4.0" Long x 1/8" ID
Materials: Polyethylene
Pack Qty: 10 Pieces
Lead Time: Ships Within 24 Hours
  pack
